????初步梳理 Spring Cloud Gateway 的处理流程
????在前面的分析中，我们知道在 RoutePredicateHandlerMapping 中是实现了路由查找，于是在这个类中 getHandlerInternal 函数打上断点，通过调用栈向前追溯调用
????向前我们追溯到了 DispatcherHandler ,在这个断点处通过断点调试发现有类似循环的操作，这个感觉是查找相应 handler 进行处理，细节部分暂时不够，后面再来详细看
public Mono<Void> handle(ServerWebExchange exchange) {
return this.handlerMappings == null ? this.createNotFoundError() : Flux.fromIterable(this.handlerMappings).concatMap((mapping) -> {
return mapping.getHandler(exchange);
}).next().switchIfEmpty(this.createNotFoundError()).flatMap((handler) -> {
return this.invokeHandler(exchange, handler);
}).flatMap((result) -> {
return this.handleResult(exchange, result);
});
}
????在上面函数打断点，再通过调用栈向前查找，找到 netty 相关的一个类： HttpServerHandle 。下面的函数中有类似 Mono 这里的代码，发布后触发调用
public void onStateChange(Connection connection, State newState) {
if (newState == HttpServerState.REQUEST_RECEIVED) {
try {
if (log.isDebugEnabled()) {
log.debug(ReactorNetty.format(connection.channel(), "Handler is being applied: {}"), new Object[]{this.handler});
}
HttpServerOperations ops = (HttpServerOperations)connection;
// Mono 发布,这一步需要注意，跟踪handler下去
Mono.fromDirect((Publisher)this.handler.apply(ops, ops)).subscribe(ops.disposeSubscriber());
} catch (Throwable var4) {
log.error(ReactorNetty.format(connection.channel(), ""), var4);
connection.channel().close();
}
}
}
????在上面注释的地方打上断点，进入相应类及其方法，跳入下面的 ReactorHttpHandlerAdapter , 其中再次调用了其他的 handler，进行参数的传递，我们再接着跟下去
public Mono<Void> apply(HttpServerRequest reactorRequest, HttpServerResponse reactorResponse) {
NettyDataBufferFactory bufferFactory = new NettyDataBufferFactory(reactorResponse.alloc());
try {
ReactorServerHttpRequest request = new ReactorServerHttpRequest(reactorRequest, bufferFactory);
ServerHttpResponse response = new ReactorServerHttpResponse(reactorResponse, bufferFactory);
if (request.getMethod() == HttpMethod.HEAD) {
response = new HttpHeadResponseDecorator((ServerHttpResponse)response);
}
// 这一步再次调用其他的 handler 进行传递，再次跟踪下去
return this.httpHandler.handle(request, (ServerHttpResponse)response).doOnError((ex) -> {
logger.trace(request.getLogPrefix() + "Failed to complete: " + ex.getMessage());
}).doOnSuccess((aVoid) -> {
logger.trace(request.getLogPrefix() + "Handling completed");
});
} catch (URISyntaxException var6) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to get request URI: " + var6.getMessage());
}
reactorResponse.status(HttpResponseStatus.BAD_REQUEST);
return Mono.empty();
}
}
????接着跳到了：WebServerManager ，里面进行了一次调用，来到了 HttpWebHandlerAdapter ,
public Mono<Void> handle(ServerHttpRequest request, ServerHttpResponse response) {
if (this.forwardedHeaderTransformer != null) {
request = this.forwardedHeaderTransformer.apply(request);
}
// 看到了熟悉，非常关键的exchange的生成，终于定位到了 exchange 的来源了
ServerWebExchange exchange = this.createExchange(request, response);
LogFormatUtils.traceDebug(logger, (traceOn) -> {
return exchange.getLogPrefix() + this.formatRequest(exchange.getRequest()) + (traceOn ? ", headers=" + this.formatHeaders(exchange.getRequest().getHeaders()) : "");
});
// delegate 和 filter 息息相关，继续跟下去
Mono var10000 = this.getDelegate().handle(exchange).doOnSuccess((aVoid) -> {
this.logResponse(exchange);
}).onErrorResume((ex) -> {
return this.handleUnresolvedError(exchange, ex);
});
response.getClass();
return var10000.then(Mono.defer(response::setComplete));
}
????接着到了： DispatcherHandler ，回到了最开始的切入点，看到其中大致是调用各个 mapping 进行处理
public Mono<Void> handle(ServerWebExchange exchange) {
return this.handlerMappings == null ? this.createNotFoundError() : Flux.fromIterable(this.handlerMappings).concatMap((mapping) -> {
return mapping.getHandler(exchange);
}).next().switchIfEmpty(this.createNotFoundError()).flatMap((handler) -> {
// handler 调用
return this.invokeHandler(exchange, handler);
}).flatMap((result) -> {
return this.handleResult(exchange, result);
});
}
????查看 handlerMappings ，它有6个，routePredicateHandlerMapping 是熟悉的重要的，它会逐个调用各个 Mapping 的 getHandler 方法，不同的 Mapping 实现了不同的 getHandlerInternal 方法，成功的话返回 FilteringWebHandler
public Mono<Object> getHandler(ServerWebExchange exchange) {
// 调用 getHandlerInternal ，不同的 Mapping 有各自的实现
return this.getHandlerInternal(exchange).map((handler) -> {
if (this.logger.isDebugEnabled()) {
this.logger.debug(exchange.getLogPrefix() + "Mapped to " + handler);
}
ServerHttpRequest request = exchange.getRequest();
if (this.hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
CorsConfiguration config = this.corsConfigurationSource != null ? this.corsConfigurationSource.getCorsConfiguration(exchange) : null;
CorsConfiguration handlerConfig = this.getCorsConfiguration(handler, exchange);
config = config != null ? config.combine(handlerConfig) : handlerConfig;
if (!this.corsProcessor.process(config, exchange) || CorsUtils.isPreFlightRequest(request)) {
return REQUEST_HANDLED_HANDLER;
}
}
// 这里 debug 返回 FilteringWebHandler
return handler;
});
}
protected abstract Mono<?> getHandlerInternal(ServerWebExchange var1);
????getHandlerInternal(exchange) 调用跳到 RoutePredicateHandlerMapping ，其中关键的是绑定上定制化的 filter
@Override
protected Mono<?> getHandlerInternal(ServerWebExchange exchange) {
// don‘t handle requests on management port if set and different than server port
if (this.managementPortType == DIFFERENT && this.managementPort != null
&& exchange.getRequest().getURI().getPort() == this.managementPort) {
return Mono.empty();
}
exchange.getAttributes().put(GATEWAY_HANDLER_MAPPER_ATTR, getSimpleName());
return lookupRoute(exchange)
// .log("route-predicate-handler-mapping", Level.FINER) //name this
.flatMap((Function<Route, Mono<?>>) r -> {
exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
if (logger.isDebugEnabled()) {
logger.debug(
"Mapping [" + getExchangeDesc(exchange) + "] to " + r);
}
// r 是它独有的filter 处理器
exchange.getAttributes().put(GATEWAY_ROUTE_ATTR, r);
// webHandler 是全局链
return Mono.just(webHandler);
}).switchIfEmpty(Mono.empty().then(Mono.fromRunnable(() -> {
exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
if (logger.isTraceEnabled()) {
logger.trace("No RouteDefinition found for ["
+ getExchangeDesc(exchange) + "]");
}
})));
}
????在上面的 Mapping 中处理完成后，返回 handler ，然后this.invokeHandler(exchange, handler), 跳转到 FilteringWebHandler ,在其中从 exchange 中取出定制化的 filter，和 global filter 排序融合在一起，最后结合前面的：Spring cloud Gateway（二） 一个Http请求的流程解析 ，整个流程就串起来了
public Mono<Void> handle(ServerWebExchange exchange) {
// 这里是获取特定转发的filter列表
Route route = exchange.getRequiredAttribute(GATEWAY_ROUTE_ATTR);
List<GatewayFilter> gatewayFilters = route.getFilters();
// 获取全局filter列表，和上面的排序组合成新的filter
List<GatewayFilter> combined = new ArrayList<>(this.globalFilters);
combined.addAll(gatewayFilters);
// TODO: needed or cached?
AnnotationAwareOrderComparator.sort(combined);
if (logger.isDebugEnabled()) {
logger.debug("Sorted gatewayFilterFactories: " + combined);
}
// 触发调用
return new DefaultGatewayFilterChain(combined).filter(exchange);
}

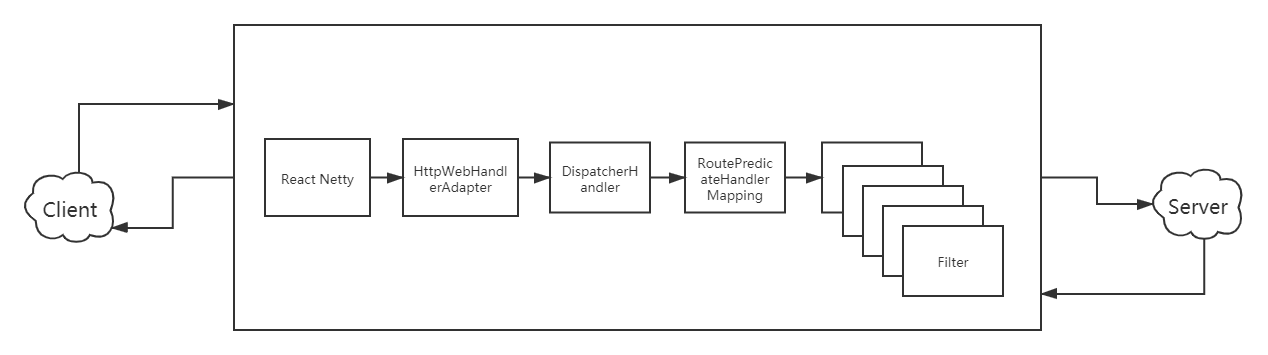

????结合前面的分析，那处理流程大致如下如下：
????完整的处理流程图大致如下：
????想到之前秦老师说的：Spring Cloud Gateway基于spring体系，所以偷了个懒，可以直接用spring mvc作为请求接入。到这里有些名称，在图中前面都是使用的react-netty服务相关的(HttpServerHandle和ReactorHttpHandlerAdapter)，Spring web(HttpWebHandlerAdapter)类似做一个承接,后面开始路由匹配和filter。其中最有特色的是，请求和响应和发送都是在filter里面做的，可以说filter做了很多核心的功能了
????后面的filter流程下面的文章链接中：
