本文介绍使用docker来安装Jenkins服务的步骤。

Docker搭建Jenkins

1. 安装

Jenkins docker hub地址: https://hub.docker.com/r/jenkins/jenkins

docker pull jenkins/jenkins

[root@server /]# docker pull jenkins/jenkins
Using default tag: latest
latest: Pulling from jenkins/jenkins
3192219afd04: Already exists
17c160265e75: Already exists
cc4fe40d0e61: Already exists
9d647f502a07: Already exists
d108b8c498aa: Already exists
1bfe918b8aa5: Already exists
dafa1a7c0751: Already exists
c69d355c63ac: Pull complete
b15898bb1800: Pull complete
a51ccfc981f7: Pull complete
49f46bd4bf74: Pull complete
efa670fd97de: Pull complete
1565294bcba3: Pull complete
4c51bcfbed1e: Pull complete
49f4fafbfbf2: Pull complete
28a75541fa5f: Pull complete
c3c03c2d5564: Pull complete
ace64d1af7cf: Pull complete
f1960af3b8ab: Pull complete
6fd1a5a6d017: Pull complete
Digest: sha256:e4630b9084110ad05b4b51f5131d62161881216d60433d1f2074d522c3dcd6dc
Status: Downloaded newer image for jenkins/jenkins:latest
docker.io/jenkins/jenkins:latest

2. 创建docker的文件影射卷

创建docker的文件影射卷，用于存储数据

[root@server tmp]# docker volume create jenkins_test
[root@server tmp]# docker volume inspect jenkins_test
[
    {
        "CreatedAt": "2020-07-18T10:49:17+08:00",
        "Driver": "local",
        "Labels": {},
        "Mountpoint": "/var/lib/docker/volumes/jenkins_test/_data",
        "Name": "jenkins_test",
        "Options": {},
        "Scope": "local"
    }
]
[root@server tmp]#

3. 运行: 创建实例

创建一个挂载目录jenkins，添加可执行权限：chmod 777 jenkins

docker run --name=jenkins -d -p 8080:8080 -p 50000:50000 -v jenkins_test:/var/jenkins_home jenkins/jenkins

运行：

[root@server /]# docker run --name=jenkins -d -p 8080:8080 -p 50000:50000 -v jenkins_test:/var/jenkins_home jenkins/jenkins
c7fb87aec99402febd95edddda5cf1dc7ad15437f674bf71a09692d93369ccb9
[root@server /]#
[root@server /]# docker ps
CONTAINER ID   IMAGE             COMMAND                  CREATED         STATUS         PORTS                                              NAMES
c7fb87aec994   jenkins/jenkins   "/sbin/tini -- /usr/…"   9 minutes ago   Up 9 minutes   0.0.0.0:8080->8080/tcp, 0.0.0.0:50000->50000/tcp   jenkins

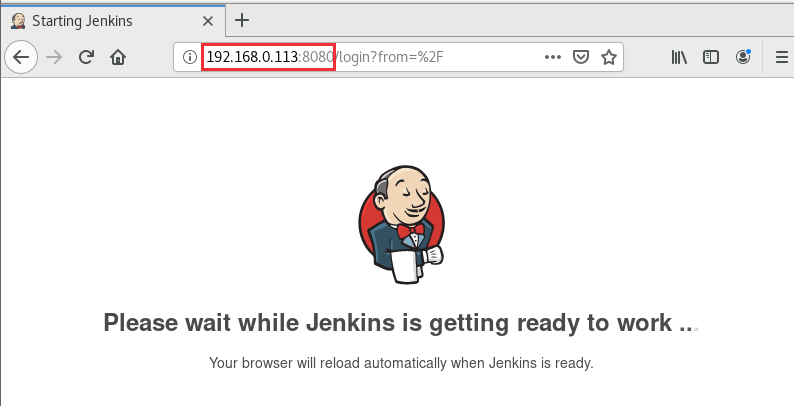

浏览器输入电脑IP地址+端口号：http://192.168.0.103:8080/

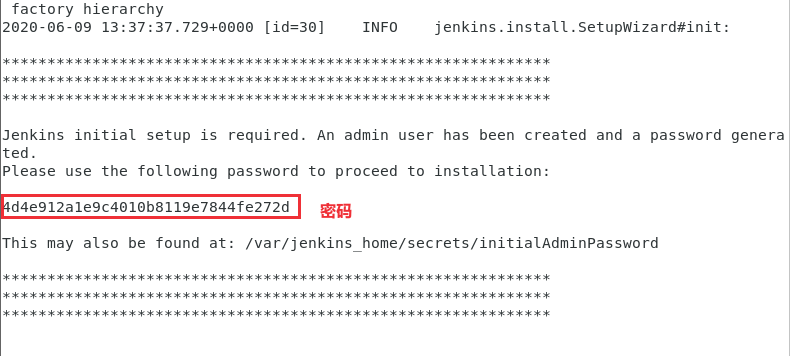

docker logs -f jenkins 查看输出日志

注意：jenkins默认启动后的时区为美国，通过以下命令启动中国时区：

# 先删除已经构建的jenkins实例
docker rm -f jenkins
# 重新创建实例并设置时区
docker run --name=jenkins -d -p 8080:8080 -p 50000:50000 -v jenkins_test:/var/jenkins_home -e JAVA_OPTS=-Duser.timezone=Asia/Shanghai jenkins/jenkins

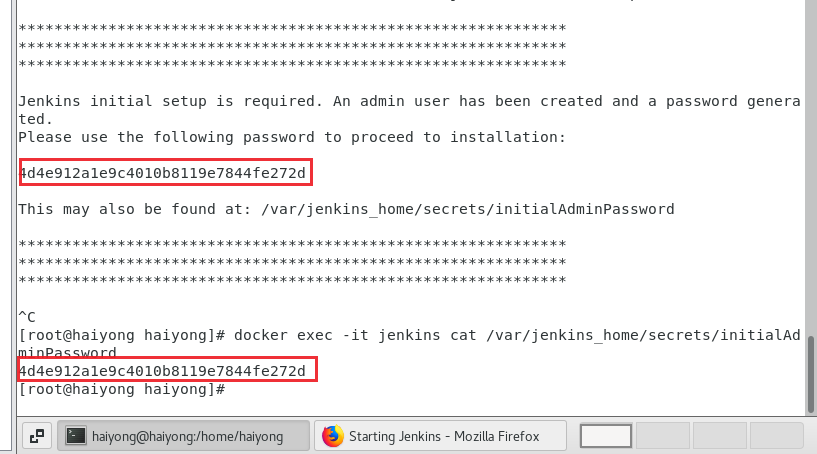

4. 查看默认密码：

docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword

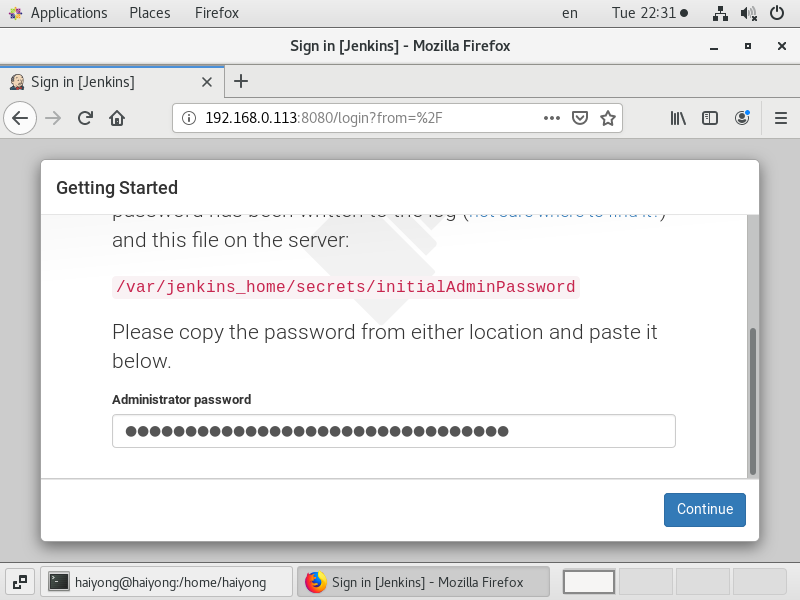

5. 输入密码

等待初始化完成后，输入密码

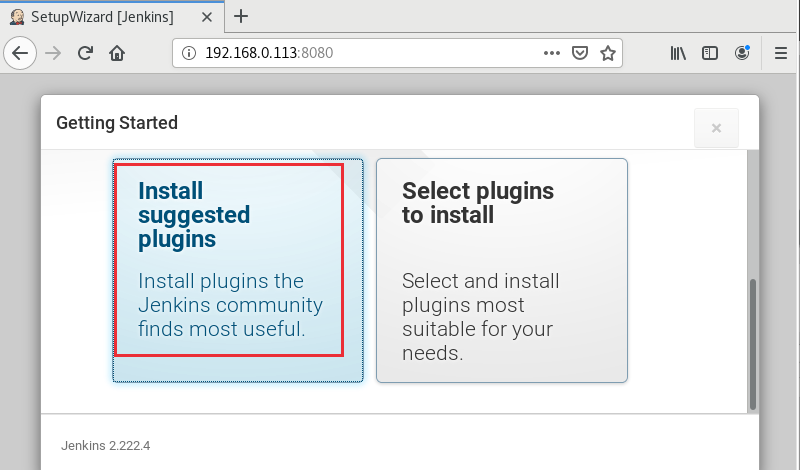

6. 安装推荐的插件

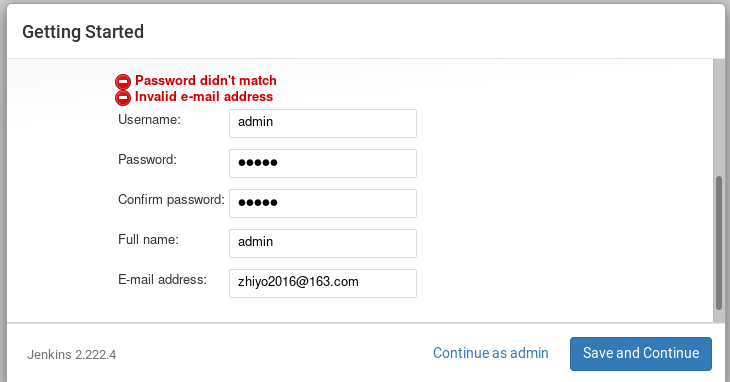

7. 设置用户名密码

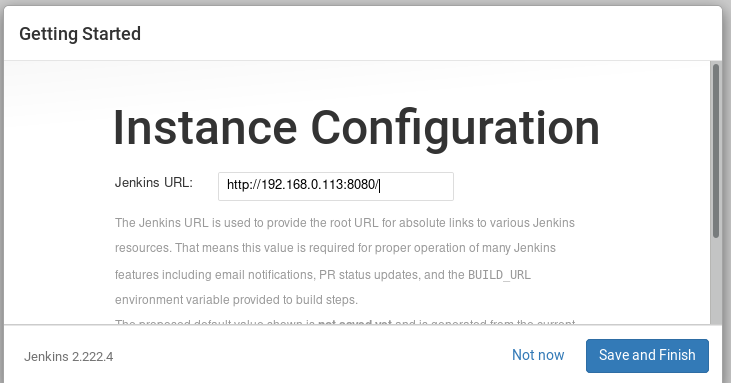

8. Jenkins URL配置

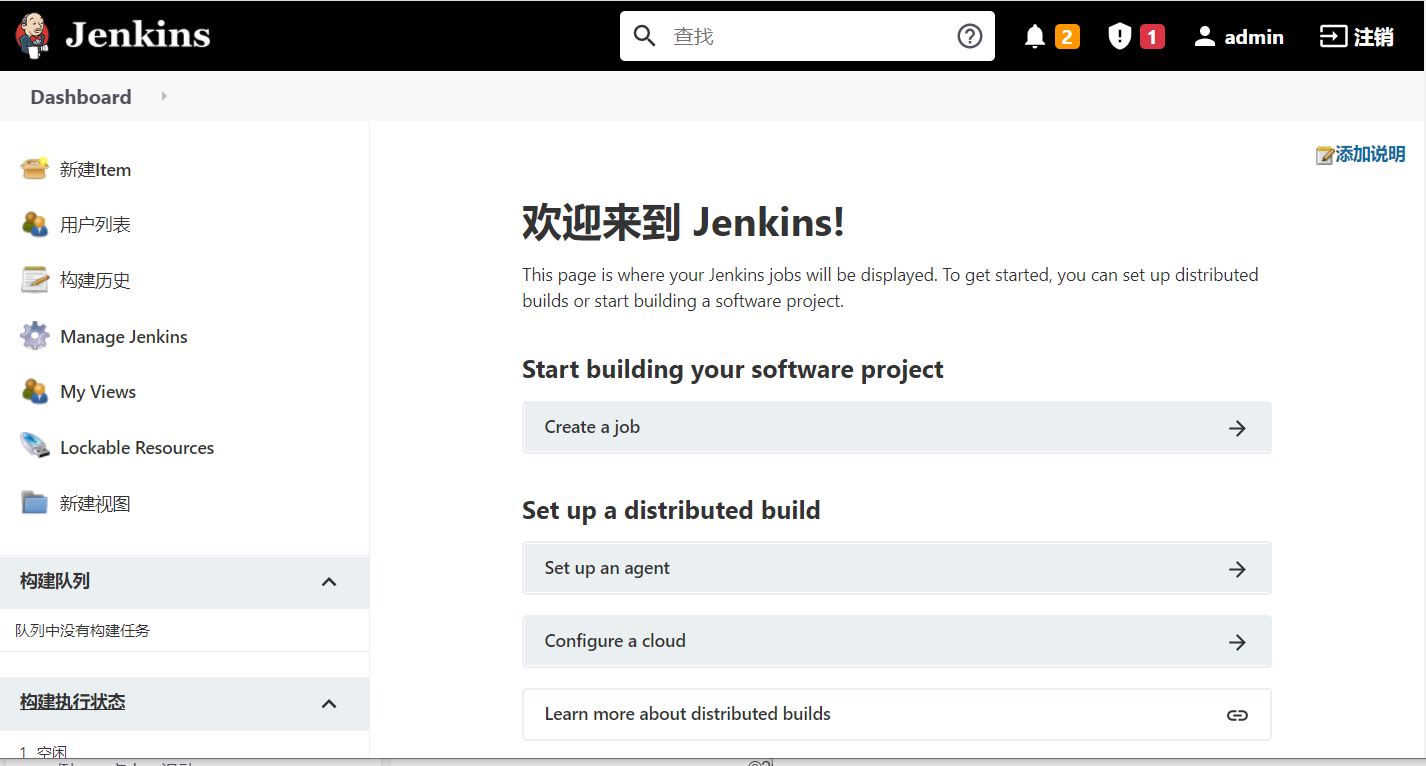

配置成功后，进入欢迎界面

Windows安装Jenkins

war文件启动方法

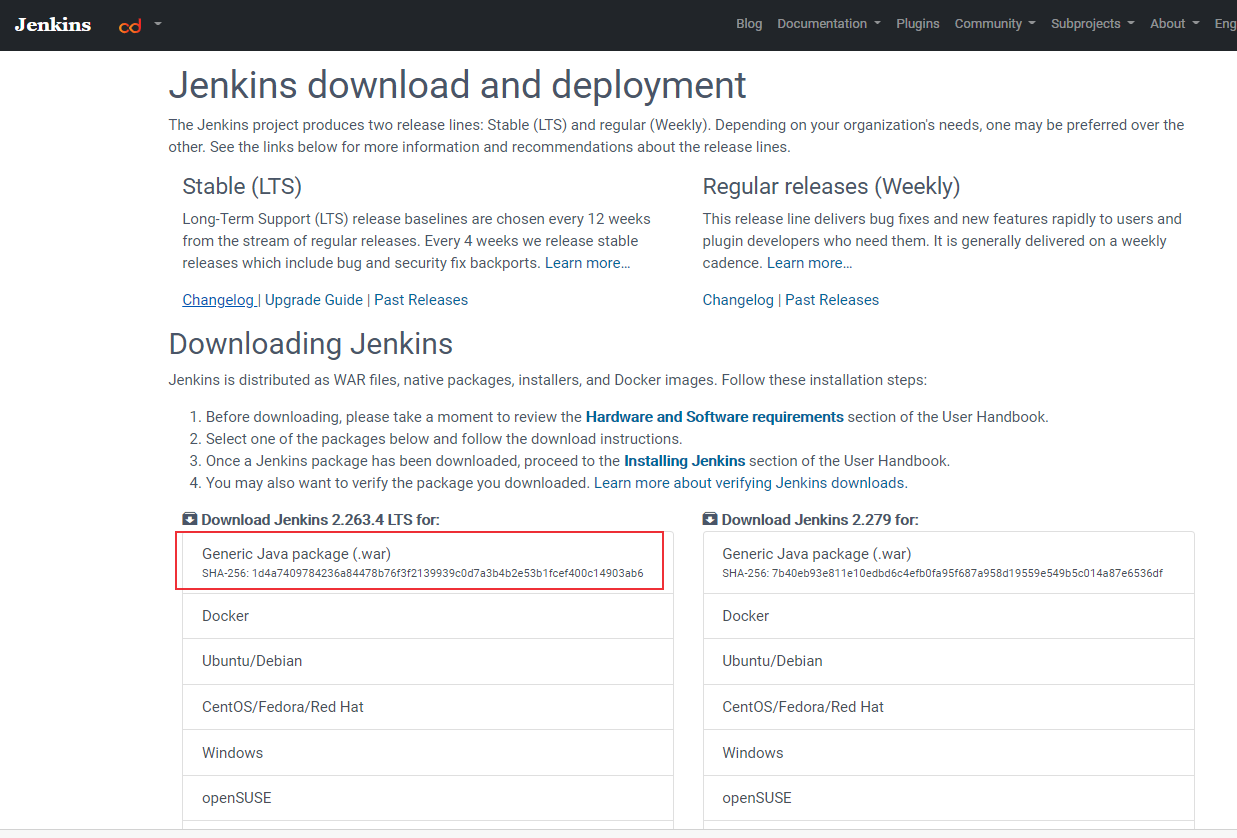

下载地址：https://www.jenkins.io/download/

进入war包所在路径执行命令：

java -jar jenkins.war --httpPort=8081

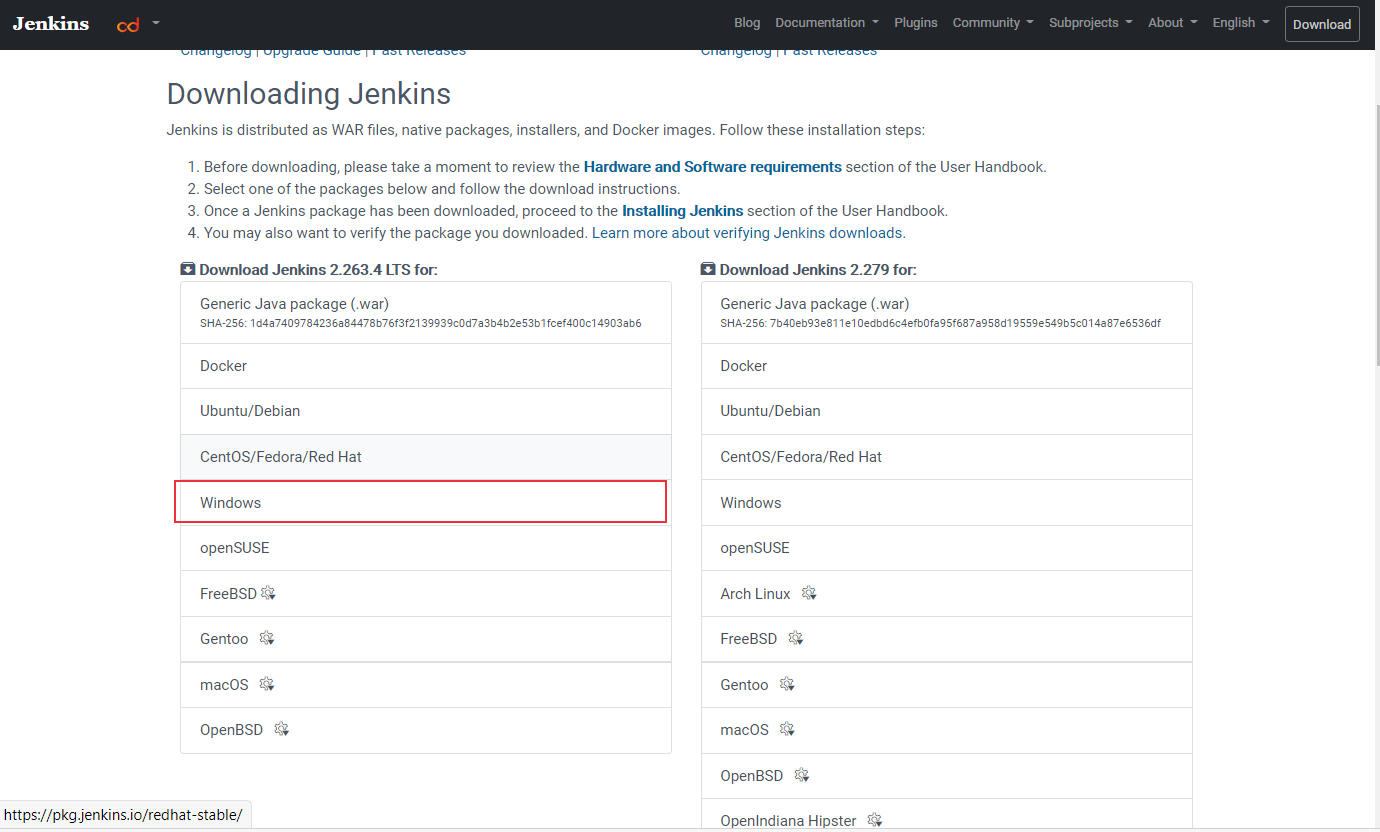

可以直接下载jenkins.msi文件安装

配置方法和Linux类似
