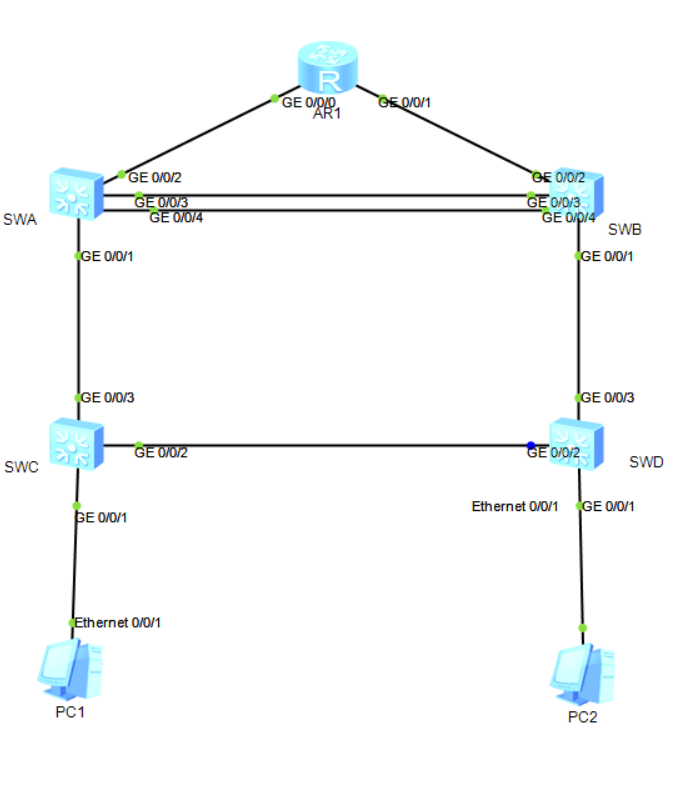

MSTP配置

sysname SWA
#
vlan batch 2 to 20
#
stp pathcost-standard legacy
#
stp instance 1 root primary
stp instance 2 root secondary
stp pathcost-standard legacy
#
stp region-configuration
 region-name RG1
 instance 1 vlan 2 to 10
 instance 2 vlan 11 to 20
 active region-configuration
#
interface Eth-Trunk1
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
 stp root-protection
#
interface GigabitEthernet0/0/3
 eth-trunk 1
#
interface GigabitEthernet0/0/4
 eth-trunk 1

sysname SWB
#
vlan batch 2 to 20
#
stp pathcost-standard legacy
#
stp instance 2 root primary
stp instance 1 root secondary
stp pathcost-standard legacy
#
stp region-configuration
 region-name RG1
 instance 1 vlan 2 to 10
 instance 2 vlan 11 to 20
 active region-configuration
#
interface Eth-Trunk1
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
 stp root-protection
#
interface GigabitEthernet0/0/3
 eth-trunk 1
#
interface GigabitEthernet0/0/4
 eth-trunk 1

sysname SWC
#
vlan batch 2 to 20
#
stp pathcost-standard legacy
#
stp region-configuration
 region-name RG1
 instance 1 vlan 2 to 10
 instance 2 vlan 11 to 20
 active region-configuration
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 10
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
 stp instance 2 cost 20000
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 2 to 20

sysname SWD
#
vlan batch 2 to 20
#
stp pathcost-standard legacy
#
stp region-configuration
 region-name RG1
 instance 1 vlan 2 to 10
 instance 2 vlan 11 to 20
 active region-configuration
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
 stp instance 1 cost 20000
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 2 to 20
#
