How to Add A Key to 2009 Toyota Camry by Xhorse VVDI Mini OBD?

 Now I’m gonna use the Xhorse VVDI Key Tool Max + Mini OBD Tool to program a new key for this car – 2009 Toyota Camry.

Prepare an old key and a new key to be programmed.

Plug Mini OBD Tool into OBD2 port firstly.

Connect it with Key Tool Max via Bluetooth, press

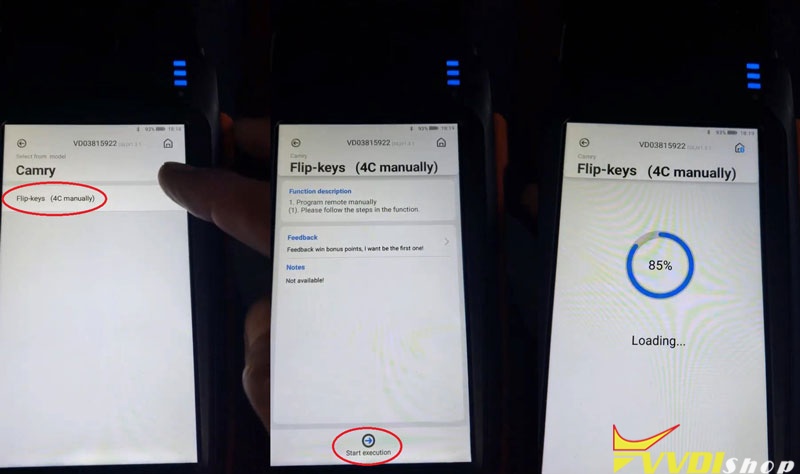

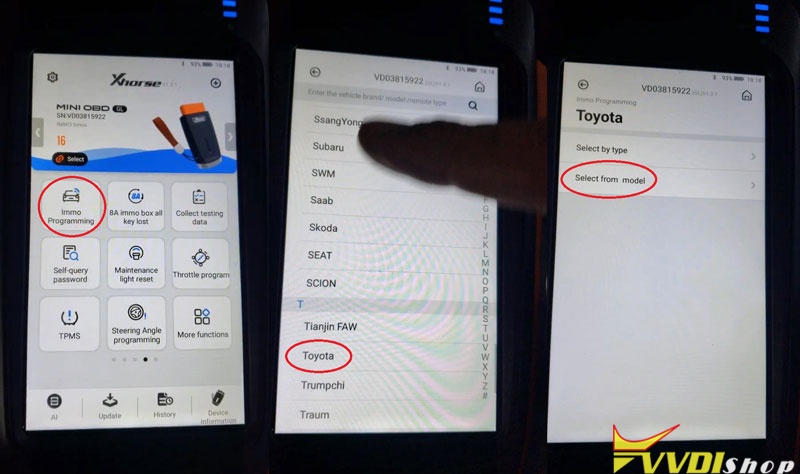

Immo programming >> Toyota >> Select from model >> Camry >> Flip-keys(4C manually) >> Start execution

Wait loading until 100%…

1. Close all doors, insert the old key to ignition switch and turn to ON.
2. Step on the gas pedal quickly 5 times, step on the brakes 6 times.
3. Remove the old key, insert the wanted programming key and turn to ON.
4. Step on the gas pedal once.

Press “OK”.

Learn key success! Press “OK”.

Let me test the new key now, okay, it works well.

Done!

This is using VVDI Key Tool Max & Mini OBD Tool to add a key for 2009 Toyota Camry successfully.
