yoga是facebook打造的一个跨IOS、Android、Window平台在内的布局引擎，兼容Flexbox布局方式，让界面更加简单。
Yoga官网：https://facebook.github.io/yoga/
官网上描述的特性包括：
目前在已开源的鸿蒙组件（https://gitee.com/openharmony-tpc/yoga）的功能现状如下：
首先我们在MainAbility中定义界面路由
public class MainAbility extends Ability {
@Override
public void onStart(Intent intent) {
super.onStart(intent);
super.setMainRoute(MainAbilitySlice.class.getName());
addActionRoute("action.dydrawnode.slice", DynamicsDrawNodeSlice.class.getName());
addActionRoute("action.showrow.slice", ShowRowAbilitySlice.class.getName());
addActionRoute("action.inflate.slice", BenchmarkInflateAbilitySlice.class.getName());
}
}然后我们来到MainAbilitySlice,其实就是做了一个向其他界面跳转的动作，并提前加载yoga的so库
public class MainAbilitySlice extends AbilitySlice {
static {
System.loadLibrary("yoga");
System.loadLibrary("yogacore");
System.loadLibrary("fb");
}
@Override
public void onStart(Intent intent) {
super.onStart(intent);
setUIContent(ResourceTable.Layout_main_layout);
Button btn0= (Button) findComponentById(ResourceTable.Id_btn_1);
btn0.setClickedListener(component -> {
Intent intent1 = new Intent();
Operation operation = new Intent.OperationBuilder()
.withAction("action.dydrawnode.slice")
.build();
intent1.setOperation(operation);
startAbilityForResult(intent1, 1);
});
Button btn2= (Button) findComponentById(ResourceTable.Id_btn_2);
btn2.setClickedListener(component -> {
Intent intent1 = new Intent();
Operation operation = new Intent.OperationBuilder()
.withAction("action.showrow.slice")
.build();
intent1.setOperation(operation);
startAbilityForResult(intent1, 1);
});
Button btn1= (Button) findComponentById(ResourceTable.Id_btn_3);
btn1.setClickedListener(component -> {
Intent intent1 = new Intent();
Operation operation = new Intent.OperationBuilder()
.withAction("action.inflate.slice")
.build();
intent1.setOperation(operation);
startAbilityForResult(intent1, 1);
});
}
@Override
public void onActive() {
super.onActive();
}
@Override
public void onForeground(Intent intent) {
super.onForeground(intent);
}
}

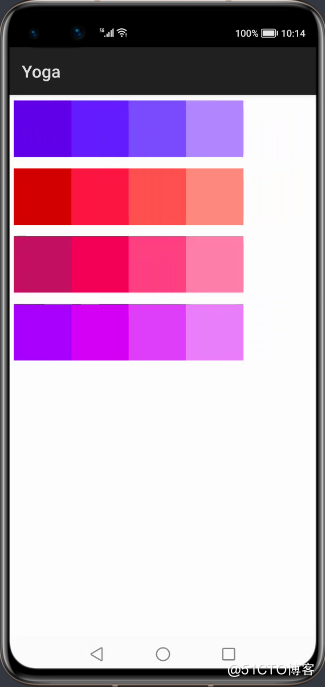

这里yoga向我们展示了动态布局的能力，效果图如下：
实现的代码如下：
public class DynamicsDrawNodeSlice extends AbilitySlice {
private static final int VIEW_WIDTH = 200;
private static final int VIEW_HEIGHT = 200;
private ArrayList<Component> mViewList = new ArrayList<>();
private ArrayList<YogaNode> mYogaNodeList = new ArrayList<>();
private int[][] colors = new int[][]{
new int[]{0xff6200ea, 0xff651fff, 0xff7c4dff, 0xffb388ff},
new int[]{0xffd50000, 0xffff1744, 0xffff5252, 0xffff8a80},
new int[]{0xffc51162, 0xfff50057, 0xffff4081, 0xffff80ab},
new int[]{0xffaa00ff, 0xffd500f9, 0xffe040fb, 0xffea80fc}
};
@Override
protected void onStart(Intent intent) {
super.onStart(intent);
PositionLayout container = new PositionLayout(this);
DisplayAttributes displayAttributes = DisplayManager.getInstance().getDefaultDisplay(this).get().getAttributes();
float screenWidth = displayAttributes.width;
float screenHeight = displayAttributes.height;
YogaNode root = new YogaNodeJNIFinalizer();
root.setWidth(screenWidth);
root.setHeight(screenHeight);
root.setFlexDirection(YogaFlexDirection.COLUMN);
createRowNodeAndView(root, 0);
createRowNodeAndView(root, 1);
createRowNodeAndView(root, 2);
createRowNodeAndView(root, 3);
root.calculateLayout(screenWidth, screenHeight);
for (int i = 0; i < mViewList.size(); i++) {
Component component = mViewList.get(i);
YogaNode yogaNode = mYogaNodeList.get(i);
YogaNode yogaNodeOwner = yogaNode.getOwner();
component.setTranslationX(yogaNodeOwner.getLayoutX() + yogaNodeOwner.getLayoutX());
component.setTranslationY(yogaNodeOwner.getLayoutY() + yogaNodeOwner.getLayoutY());
component.setLeft((int) (yogaNodeOwner.getLayoutX() + yogaNode.getLayoutX()));
component.setTop((int) (yogaNodeOwner.getLayoutY() + yogaNode.getLayoutY()));
container.addComponent(component);
}
super.setUIContent(container);
}
private void createRowNodeAndView(YogaNode root, int index) {
YogaNode row = new YogaNodeJNIFinalizer();
row.setHeight(VIEW_HEIGHT);
row.setWidth(VIEW_WIDTH * 4);
row.setFlexDirection(YogaFlexDirection.ROW);
row.setMargin(YogaEdge.ALL, 20);
for (int i = 0; i < 4; i++) {
YogaNode yogaNode = new YogaNodeJNIFinalizer();
yogaNode.setWidth(VIEW_WIDTH);
yogaNode.setHeight(VIEW_HEIGHT);
Component component = createView(colors[index][i]);
row.addChildAt(yogaNode, i);
mYogaNodeList.add(yogaNode);
mViewList.add(component);
}
root.addChildAt(row, index);
}
private Component createView(int color) {
Component view = new Component(this);
ShapeElement background = new ShapeElement();
background.setRgbColor(convertColor(color));
view.setBackground(background);
ComponentContainer.LayoutConfig layoutConfig = new AdaptiveBoxLayout.LayoutConfig(VIEW_WIDTH, VIEW_HEIGHT);
view.setLayoutConfig(layoutConfig);
return view;
}
/**
* 转换颜色
* @param color
* @return RgbColor
*/
public RgbColor convertColor(int color) {
int colorInt = color;
int red = (colorInt & 0xff0000) >> 16;
int green = (colorInt & 0x00ff00) >> 8;
int blue = (colorInt & 0x0000ff);
return new RgbColor(red, green, blue);
}
}代码中定义了一个root根布局，宽高为屏幕的宽高，接着定义了四个行布局，并向每个行布局里添加4个子布局，最重要的是在调用root.calculateLayout(screenWidth, screenHeight)后，便将每个子布局的位置给确定了下来，然后根据获取到的每个布局的参数，给每个Component设置位置。该演示只是借助yoga组件来确定每个Component位置，真正使渲染生效的还是基于鸿蒙的原生控件。

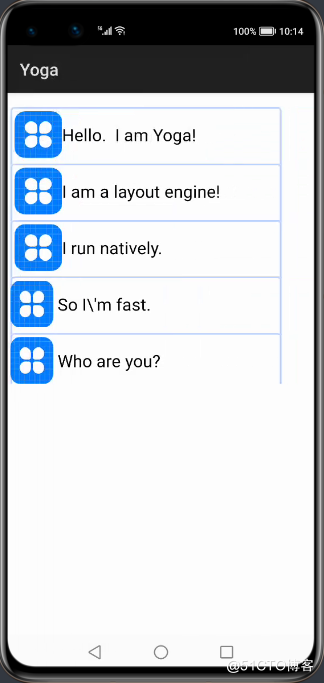

接下来展示如何使用yoga组件在xml里通过填写属性来控制item位置的能力，效果图如下：
代码如下：
<?xml version="1.0" encoding="utf-8" ?>
<com.facebook.yoga.openharmony.YogaLayout
xmlns:ohos="http://schemas.huawei.com/res/ohos"
xmlns:yoga="http://schemas.huawei.com/apk/res-auto"
ohos:height="match_parent"
ohos:width="match_parent"
>
<com.facebook.yoga.openharmony.YogaLayout
ohos:height="60vp"
ohos:width="match_content"
yoga:yg_alignItems="center"
yoga:yg_flexDirection="row"
yoga:yg_marginHorizontal="15"
yoga:yg_marginStart="15"
yoga:yg_marginTop="50"
ohos:background_element="$graphic:item_element"
>
<Text
ohos:height="50vp"
ohos:width="50vp"
ohos:background_element="$media:icon"
yoga:yg_flex="0"
yoga:yg_marginStart="15"
/>
<Text
ohos:height="50vp"
ohos:width="220vp"
ohos:text="Hello. I am Yoga!"
ohos:text_color="#000000"
yoga:yg_flex="1"
yoga:yg_marginStart="15"
ohos:text_size="20fp"
/>
</com.facebook.yoga.openharmony.YogaLayout>
<com.facebook.yoga.openharmony.YogaLayout
ohos:background_element="$graphic:item_element"
ohos:height="60vp"
ohos:width="match_content"
yoga:yg_alignItems="center"
yoga:yg_flexDirection="row"
yoga:yg_marginHorizontal="15"
yoga:yg_marginTop="20"
yoga:yg_marginStart="15"
>
<Text
ohos:height="50vp"
ohos:width="50vp"
ohos:background_element="$media:icon"
yoga:yg_flex="0"
yoga:yg_marginStart="15"
/>
<Text
ohos:height="50vp"
ohos:width="250vp"
ohos:text="I am a layout engine!"
ohos:text_color="#000000"
yoga:yg_flex="1"
yoga:yg_marginStart="15"
ohos:text_size="20fp"
/>
</com.facebook.yoga.openharmony.YogaLayout>
<com.facebook.yoga.openharmony.YogaLayout
ohos:background_element="$graphic:item_element"
ohos:height="60vp"
ohos:width="match_content"
yoga:yg_alignItems="center"
yoga:yg_flexDirection="row"
yoga:yg_marginHorizontal="15"
yoga:yg_marginTop="20"
>
<Text
ohos:height="50vp"
ohos:width="50vp"
ohos:background_element="$media:icon"
yoga:yg_flex="0"
yoga:yg_marginStart="15"
/>
<Text
ohos:height="50vp"
ohos:width="250vp"
ohos:text="I run natively."
ohos:text_color="#000000"
yoga:yg_flex="1"
yoga:yg_marginStart="15"
ohos:text_size="20fp"
/>
</com.facebook.yoga.openharmony.YogaLayout>
<com.facebook.yoga.openharmony.YogaLayout
ohos:background_element="$graphic:item_element"
ohos:height="60vp"
ohos:width="match_content"
yoga:yg_alignItems="center"
yoga:yg_flexDirection="row"
yoga:yg_marginHorizontal="15"
yoga:yg_marginTop="20"
>
<Text
ohos:height="50vp"
ohos:width="50vp"
ohos:background_element="$media:icon"
yoga:yg_flex="0"
/>
<Text
ohos:height="50vp"
ohos:width="200vp"
ohos:text="So I\‘m fast."
ohos:text_color="#000000"
yoga:yg_flex="1"
yoga:yg_marginStart="15"
ohos:text_size="20fp"
/>
</com.facebook.yoga.openharmony.YogaLayout>
<com.facebook.yoga.openharmony.YogaLayout
ohos:background_element="$graphic:item_element"
ohos:height="60vp"
ohos:width="match_content"
yoga:yg_alignItems="center"
yoga:yg_flexDirection="row"
yoga:yg_marginHorizontal="15"
yoga:yg_marginTop="20"
>
<Text
ohos:height="50vp"
ohos:width="50vp"
ohos:background_element="$media:icon"
yoga:yg_flex="0"
/>
<Text
ohos:height="50vp"
ohos:width="200vp"
ohos:text="Who are you?"
ohos:text_color="#000000"
yoga:yg_flex="1"
yoga:yg_marginStart="15"
ohos:text_size="20fp"
/>
</com.facebook.yoga.openharmony.YogaLayout>
</com.facebook.yoga.openharmony.YogaLayout>这里YogaLayout其实可以看成FlexBox（详情请参考附录：FlexBox科普），可以通过参数调节子布局位置，我们可以使用YogaLayout上的yoga:yg_alignItems="center"属性使得item居中显示，并通过yoga:yg_flexDirection="row"属性使得之item横向排列。子item也可以通过设置yoga:yg_flex="1"来调整自己的权重。更多属性的使用大家也可以下载项目亲自体验。
自行编译工程entity、yoga、yoga_layout、fb生成libyoga.so、libfb.so、libyogacore.so
将其添加到要集成的libs文件夹内，在entity的gradle内添加如下代码。
方式一：
通过library生成har包，添加har包到libs文件夹内。
在entry的gradle内添加如下代码：
implementation fileTree(dir:‘libs‘, include:[‘*.jar‘,‘*.har‘])文章后续内容和相关附件可以点击下面的原文链接前往学习
原文链接：https://harmonyos.51cto.com/posts/4153#bkwz
