用verilog实现PWM控制呼吸灯。呼吸周期2秒：1秒逐渐变 亮，1秒逐渐变暗。系统时钟24MHz，pwm周期1ms，精度1us。

module led(
input           clk,    //24Mhz
    input           rst_n,
    output          led_out
    );
 parameter   DELAY24 = 24;
//parameter   DELAY1000 = 1000;
parameter   DELAY1000 = 10;//just test


wire            delay_1us;
wire            delay_1ms;
wire            delay_1s;
reg             pwm;
reg     [7:0]   cnt1;
reg     [10:0]  cnt2;
reg     [10:0]  cnt3;
reg             display_state;

//延时1us
always @(posedge clk or negedge rst_n)begin
    if(!rst_n)
        cnt1 <= 6‘b0;
    else if(cnt1 == DELAY24 - 1‘b1)
        cnt1 <= 6‘b0;
    else
        cnt1 <= cnt1 + 1‘b1;
end

assign delay_1us = (cnt1 == DELAY24 - 1‘b1)? 1‘b1:1‘b0;

//延时1ms
always @(posedge clk or negedge rst_n)begin
    if(!rst_n)
        cnt2 <= 10‘b0;
    else if(delay_1us == 1‘b1)begin
        if(cnt2 == DELAY1000 - 1‘b1)
            cnt2 <= 10‘b0;
        else
            cnt2 <= cnt2 + 1‘b1;
    end
    else
        cnt2 <= cnt2;
end
assign delay_1ms = ((delay_1us == 1‘b1) && (cnt2 == DELAY1000 - 1‘b1))? 1‘b1:1‘b0;

//延时1s
always @(posedge clk or negedge rst_n)begin
    if(!rst_n)
        cnt3 <= 10‘b0;
    else if(delay_1ms)
    begin
         if(cnt3 == DELAY1000 - 1‘b1)
            cnt3 <= 10‘b0;
        else
            cnt3 <= cnt3 + 1‘b1;
     end
    else
        cnt3 <= cnt3;
end

assign delay_1s = ((delay_1ms == 1‘b1) && (cnt3 == DELAY1000 - 1‘b1))? 1‘b1:1‘b0;

//state change
always @(posedge clk or negedge rst_n)begin
    if(!rst_n)
        display_state <= 1‘b0;
    else if(delay_1s)//每一秒切换一次led灯显示状态
        display_state <= ~display_state;
    else
        display_state <= display_state;
end

//pwm信号的产生
always @(posedge clk or negedge rst_n)begin
    if(!rst_n)
            pwm <= 1‘b0;
    else
        case(display_state)
            1‘b0: pwm <= (cnt2 < cnt3)? 1‘b1:1‘b0;
            1‘b1: pwm <= (cnt2 < cnt3)? 1‘b0:1‘b1;
            default: pwm <= pwm;
        endcase
end
assign led_out = pwm;
endmodule

module led_tb(

    );
    reg clk;
    reg rst_n;
    wire led_out;


    //generate clock
    initial begin
        clk = 0;
        forever
            #20 clk = ~clk;
    end

    //initialization
    initial begin
        rst_n = 0;
        #10000
        rst_n = 1;

    end

    //instantiation
led led_inst (
   // Input Ports - Single Bit
   .clk     (clk),
   .rst_n   (rst_n),
   // Input Ports - Busses
   // Output Ports - Single Bit
   .led_out (led_out)
   // Output Ports - Busses
   // InOut Ports - Single Bit
   // InOut Ports - Busses
);

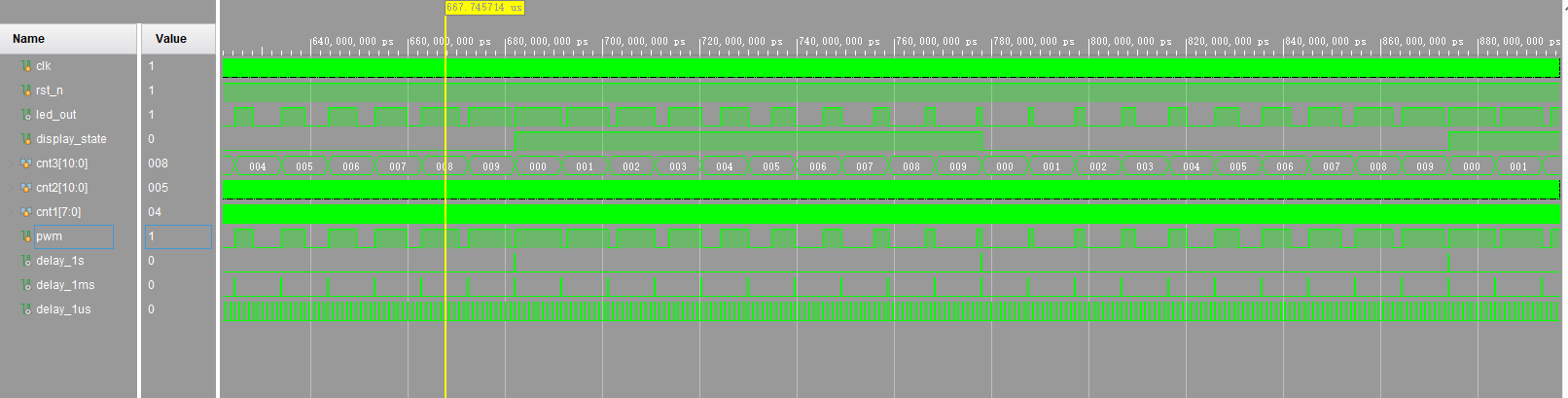

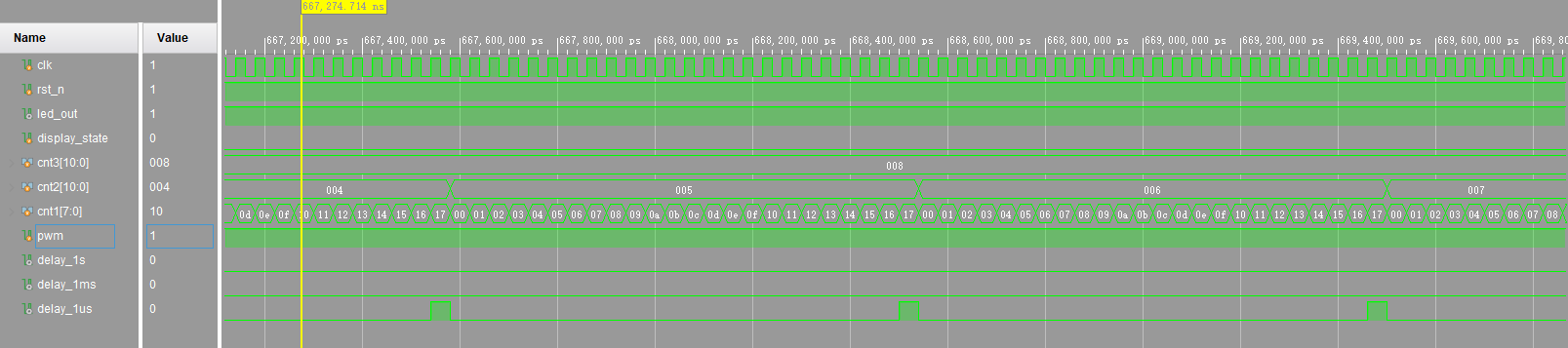

endmodule
