cWeb是基于微软的.Net Framework 4框架，数据库是sql server 2008 r2。
cWeb开发框架下载，点击这里去下载。

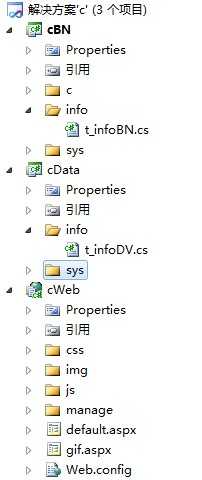

cWeb开发框架借鉴三层架构理论分为三层，分别是：cData、cBN和cWeb。cData是数据层，cBN是业务处理层，cWeb是业务展示层。解决方案如图示：
一、cData数据层
cData数据层，数据库字段的映射类。在其他开发框架中常见于datatable和dataview，也就是将数据库表映射成datatable，dataview继承datatable，并将其他如视图等的字段映射在dataview中。在类似于petshop等开发框架中分层可谓详细，虽然现在硬件的发展可以不用考虑继承、映射、调用等等的运行时间，但是对于大数据量下即使很小的优化都会起到极大的作用，所以直接的就是高效率的，简化后数据层都融合在了一起。
data层数据示例：
using
System;namespace
AA.cData{ /// <summary> /// t_info 的摘要说明。 /// </summary> [Serializable] public
class
t_infoDV { /// <summary> /// t_infoDV /// </summary> public
t_infoDV() { } //============================数据库字段=================================// private
long
_ID = -1; /// <summary> /// ID /// </summary> public
long
ID { get { return
_ID; } set { _ID = value; } } private
string _t_info_title = null; /// <summary> /// t_info_title /// </summary> public
string t_info_title { get { return
_t_info_title; } set { _t_info_title = value; } } private
DateTime _t_info_createtime = System.DateTime.MinValue; /// <summary> /// t_info_createtime /// </summary> public
DateTime t_info_createtime { get { return
_t_info_createtime; } set { _t_info_createtime = value; } } //============================扩展字段==================================// private
string _t_info_title_like = null; /// <summary> /// t_info_title [模糊查询] /// </summary> public
string t_info_title_like { get { return
_t_info_title_like; } set { _t_info_title_like = value; } } }} |
二、cBN业务处理层
cBN业务处理层，也可以叫业务逻辑层。是数据层之上用来处理业务逻辑的方法，将除了web之外的所有业务处理都可以放在这个层里，比如添加、修改、删除、各种查询等方法，在web层仅仅调用一下就可以实现功能，也体现了业务逻辑通用原则，这样同样的业务处理就可以重复调用，提高了开发效率，减少了代码的冗长重复。
BN层示例：
using
System;using
System.Collections.Generic;using
System.Text;using
System.Data;using
System.Data.SqlClient;using
cDB;using
AA.cData;namespace
AA.cBN{ /// <summary> /// t_info 的摘要说明。 /// </summary> public
class
t_infoBN { DataInfo cDI; /// <summary> /// t_infoBN /// </summary> public
t_infoBN() { cDI = new
DataInfo(); } #region [添加|修改|删除] /// <summary> /// [添加] /// </summary> /// <param name="tDV"></param> /// <param name="msg"></param> /// <returns></returns> public
int
Add(t_infoDV tDV, out
string msg) { try { mCommand oCommand = new
mCommand(); oCommand.SqlTxt = "Insert into t_info(t_info_title,t_info_createtime)"
+ " values(@t_info_title,@t_info_createtime)"; SqlParameter[] SqlItems = new
SqlParameter[2]; SqlItems[0] = new
SqlParameter("@t_info_title", SqlDbType.NVarChar); SqlItems[0].Value = tDV.t_info_title; SqlItems[1] = new
SqlParameter("@t_info_createtime", SqlDbType.DateTime); SqlItems[1].Value = tDV.t_info_createtime; oCommand.AddParameter(SqlItems); int
iResult = cDI.iCommandSql(oCommand); if
(iResult > -1) { msg = "添加成功!"; } else { msg = "添加失败!"; } return
iResult; } catch
//(Exception ex) { //msg = ex.Message; msg = "添加失败(异常)!"; return
-11; //-11表示异常 } } /// <summary> /// [修改] /// </summary> /// <param name="tDV"></param> /// <param name="msg"></param> /// <returns></returns> public
int
Edit(t_infoDV tDV, out
string msg) { try { mCommand oCommand = new
mCommand(); oCommand.SqlTxt = "update t_info set "
+ "t_info_title=@t_info_title,"
+ "t_info_createtime=@t_info_createtime "
+ "where ID=@ID"; SqlParameter[] SqlItems = new
SqlParameter[3]; SqlItems[0] = new
SqlParameter("@t_info_title", SqlDbType.NVarChar); SqlItems[0].Value = tDV.t_info_title; SqlItems[1] = new
SqlParameter("@t_info_createtime", SqlDbType.DateTime); SqlItems[1].Value = tDV.t_info_createtime; SqlItems[2] = new
SqlParameter("@ID", SqlDbType.BigInt); SqlItems[2].Value = tDV.ID; oCommand.AddParameter(SqlItems); int
iResult = cDI.iCommandSql(oCommand); if
(iResult > -1) { msg = "修改成功!"; } else { msg = "修改失败!"; } return
iResult; } catch
//(Exception ex) { //msg = ex.Message; msg = "添加失败(异常)!"; return
-11; //-11表示异常 } } /// <summary> /// [删除] /// </summary> /// <param name="tDV"></param> /// <param name="msg"></param> /// <returns></returns> public
int
Del(t_infoDV tDV, out
string msg) { try { mCommand oCommand = new
mCommand(); oCommand.SqlTxt = "delete t_info where ID=@ID"; SqlParameter[] SqlItems = new
SqlParameter[1]; SqlItems[0] = new
SqlParameter("@ID", SqlDbType.BigInt); SqlItems[0].Value = tDV.ID; oCommand.AddParameter(SqlItems); int
iResult = cDI.iCommandSql(oCommand); if
(iResult > -1) { msg = "删除成功!"; } else { msg = "删除失败!"; } return
iResult; } catch
//(Exception ex) { //msg = ex.Message; msg = "删除失败(异常)!"; return
-11; //-11表示异常 } } #endregion #region [查询] /// <summary> /// [返回数据分页] /// </summary> /// <param name="tDV"></param> /// <param name="sqlWhere">where语句</param> /// <returns></returns> public
DataTable GetDataList(t_infoDV tDV, string
sqlWhere) { DataTable DTe = new
DataTable(); mCommand oCommand = new
mCommand(); StringBuilder SqlTxtPrefiex = new
StringBuilder(" select ISNULL(count(ID),0) as Counts from View_t_info where 1 = 1 "
+ sqlWhere + " "); SqlParameter tSqlItem = null; if
(tDV.t_info_title != null) { SqlTxtPrefiex.Append(" and t_info_title = @t_info_title"); tSqlItem = new
SqlParameter("@t_info_title", SqlDbType.NVarChar); tSqlItem.Value = tDV.t_info_title; oCommand.SqlParameters.Add(tSqlItem); } if
(tDV.t_info_title_like != null) { SqlTxtPrefiex.Append(" and t_info_title like @t_info_title_like"); tSqlItem = new
SqlParameter("@t_info_title_like", SqlDbType.NVarChar); tSqlItem.Value = "%"
+ tDV.t_info_title_like + "%"; oCommand.SqlParameters.Add(tSqlItem); } oCommand.SqlTxt = SqlTxtPrefiex.ToString(); DTe = cDI.GetTable(oCommand); return
DTe; } /// <summary> /// [返回数据] /// </summary> /// <param name="tDV"></param> /// <param name="column">显示的列，默认为【*】全部</param> /// <param name="sqlWhere">where语句</param> /// <param name="beginIndex">开始记录</param> /// <param name="endIndex">结束记录</param> /// <param name="Order">排序，如【order by ID desc】</param> /// <returns></returns> public
DataTable GetDataList(t_infoDV tDV, string
column, string
sqlWhere, long
beginIndex, long
endIndex, string
Order) { if
(string.IsNullOrEmpty(column)) column = " * "; mCommand oCommand = new
mCommand(); StringBuilder cSqlTxtPrefiex = new
StringBuilder("select * from NoPagedTable WHERE rowIndex>=@beginIndex and rowIndex<=@endIndex"); SqlParameter[] SqlItems = new
SqlParameter[2]; SqlItems[0] = new
SqlParameter("@beginIndex", SqlDbType.BigInt); SqlItems[0].Value = beginIndex; SqlItems[1] = new
SqlParameter("@endIndex", SqlDbType.BigInt); SqlItems[1].Value = endIndex; oCommand.SqlParameters.AddRange(SqlItems); if
(Order == string.Empty) { Order = " order by ID DESC "; } StringBuilder SqlTxtPrefiex = new
StringBuilder( "WITH NoPagedTable AS "
+ "("
+ "SELECT ROW_NUMBER() OVER ("
+ Order + ") AS rowIndex,"
+ column + " FROM View_t_info where 1 = 1 "
+ sqlWhere + " "); SqlParameter tSqlItem = null; if
(tDV.t_info_title != null) { SqlTxtPrefiex.Append(" and t_info_title = @t_info_title"); tSqlItem = new
SqlParameter("@t_info_title", SqlDbType.NVarChar); tSqlItem.Value = tDV.t_info_title; oCommand.SqlParameters.Add(tSqlItem); } if
(tDV.t_info_title_like != null) { SqlTxtPrefiex.Append(" and t_info_title like @t_info_title_like"); tSqlItem = new
SqlParameter("@t_info_title_like", SqlDbType.NVarChar); tSqlItem.Value = "%"
+ tDV.t_info_title_like + "%"; oCommand.SqlParameters.Add(tSqlItem); } SqlTxtPrefiex.Append(")"); oCommand.SqlTxt = SqlTxtPrefiex.ToString() + cSqlTxtPrefiex.ToString(); return
cDI.GetTable(oCommand); } /// <summary> /// [返回DataTable] /// </summary> /// <param name="tDV"></param> /// <param name="topNum">返回行数，默认【0】全部</param> /// <param name="column">显示的列，默认为【*】全部</param> /// <param name="sqlWhere">where语句</param> /// <param name="order">排序，如【order by ID desc】</param> /// <returns></returns> public
DataTable GetDataTable(t_infoDV tDV, int
topNum, string
column, string
sqlWhere, string
order) { if
(string.IsNullOrEmpty(column)) column = " * "; string
topNumSql = ""; if
(topNum > 0) topNumSql = " top "
+ topNum.ToString(); DataTable DT = new
DataTable(); mCommand oCommand = new
mCommand(); StringBuilder SqlTxtPrefiex = new
StringBuilder(" select "
+ topNumSql + " "
+ column + " from View_t_info where 1 = 1 "
+ sqlWhere + " "); SqlParameter tSqlItem = null; if
(tDV.ID != -1) { SqlTxtPrefiex.Append(" and ID=@ID"); tSqlItem = new
SqlParameter("@ID", SqlDbType.BigInt); tSqlItem.Value = tDV.ID; oCommand.SqlParameters.Add(tSqlItem); } if
(tDV.t_info_title != null) { SqlTxtPrefiex.Append(" and t_info_title = @t_info_title"); tSqlItem = new
SqlParameter("@t_info_title", SqlDbType.NVarChar); tSqlItem.Value = tDV.t_info_title; oCommand.SqlParameters.Add(tSqlItem); } if
(tDV.t_info_title_like != null) { SqlTxtPrefiex.Append(" and t_info_title like @t_info_title_like"); tSqlItem = new
SqlParameter("@t_info_title_like", SqlDbType.NVarChar); tSqlItem.Value = "%"
+ tDV.t_info_title_like + "%"; oCommand.SqlParameters.Add(tSqlItem); } if
(string.IsNullOrEmpty(order)) order = " order by ID desc "; SqlTxtPrefiex.Append(" "
+ order + " "); oCommand.SqlTxt = SqlTxtPrefiex.ToString(); DT = cDI.GetTable(oCommand); return
DT; } #endregion }} |
三、cWeb业务展示层
cWeb业务展示层，用于业务逻辑展示的层，调用BN层的函数直接显示在web页面中。
web层示例：
infolist.aspx.cs代码如下：
using
System;using
System.Collections.Generic;using
System.Linq;using
System.Web;using
System.Web.UI;using
System.Web.UI.WebControls;using
System.Data;using
AA.cData;using
AA.cBN;using
cPage;namespace
AA.cWeb.manage.info{ public
partial class
infolist : System.Web.UI.Page { cUser cu = new
cUser(); public
int
p = 1; //页码 protected
void
Page_Load(object
sender, EventArgs e) { #region [判断是否登录] if
(!cu.isLogin()) { cGlobal.frameGoUrl(this, "../../default.aspx"); return; } #endregion #region 分页获得页码 string
_p = Request.QueryString["p"]; if
(string.IsNullOrEmpty(_p)) _p = "1"; if
(cGlobal.IsIntType(_p)) { p = Convert.ToInt32(_p); } else { cGlobal.showBoxBack(this, "页码不正确！"); return; } #endregion #region [判断是具有访问权限] if
(!cDataCommon.userPagePower(cu.userID, "0202")) { cGlobal.showBoxBack(this, "您没有权限访问！"); return; } #endregion #region [获得在【系统设置=》角色管理=》权限设置】中点击某一菜单后，“菜单功能权限设置”设置的功能] string
userPageFunctionPower = cDataCommon.userPageFunctionPower(cu.userID, "0202"); //判断是否具有“添加”功能 if
(userPageFunctionPower.IndexOf("|add|") > -1) btnAdd.Visible = true; else btnAdd.Visible = false; #endregion if
(!Page.IsPostBack) { dataBind(); } } protected
void
dataBind() { string
_url = "infolist.aspx?p=[#p#]"; int
_pageNum = 10; // 中间页码数量 int
_pageSize = 10; //每页记录数 int
_beginIndex = 0; int
_endIndex = 0; t_infoBN tBN = new
t_infoBN(); t_infoDV tDV = new
t_infoDV(); DataTable rcDT = tBN.GetDataList(tDV, ""); lblpage.Text = mPage.getPage(Convert.ToInt32(rcDT.Rows[0][0].ToString()), _pageSize, _pageNum, p, out
_beginIndex, out
_endIndex, _url); DataTable DT = tBN.GetDataList(tDV, "", "", _beginIndex, _endIndex, ""); rlist.DataSource = DT; rlist.DataBind(); } protected
void
rlist_ItemDataBound(object
sender, RepeaterItemEventArgs e) { if
(e.Item.ItemIndex > -1) { ((LinkButton)e.Item.FindControl("lnkbtnDel")).Attributes["onclick"] = "return confirm(‘确认要删除吗？‘);"; } } protected
void
rlist_ItemCommand(object
source, RepeaterCommandEventArgs e) { if
(e.CommandName == "del") { try { long
_ID = Convert.ToInt64(((HiddenField)(e.Item.FindControl("hfID"))).Value); t_sys_logBN tBN = new
t_sys_logBN(); t_sys_logDV tDV = new
t_sys_logDV(); tDV.ID = _ID; string
msg = ""; int
iResult = -2; iResult = tBN.Del(tDV, out
msg); if
(iResult >= 0) //0,执行完成，>1，执行完成影响的记录数 { cGlobal.showBoxGo(this, "删除成功！", Request.Url.ToString()); } else { cGlobal.showBoxBack(this, "删除失败！"); } } catch { cGlobal.showBoxBack(this, "数据格式不正确(异常)"); } } } }} |
更详细的介绍和cWeb源代码，去这里下载。
原帖地址：cWeb开发框架，基于asp.net的cWeb应用开发平台介绍（二）
