用 eric6 与 PyQt5 实现python的极速GUI编程(系列04)---- PyQt5自带教程:地址簿(address book)

时间:2015-01-21 01:05:57      阅读:19961      评论:0      收藏:0      [点我收藏+]

标签:des   class   style   代码   com   log   src   文件   http

【引子】

在PyQt5自带教程中,地址簿(address book)程序没有完全实现界面与业务逻辑分离。

本文我打算用eric6+PyQt5对其进行改写,以实现界面与逻辑完全分离。



【概览】

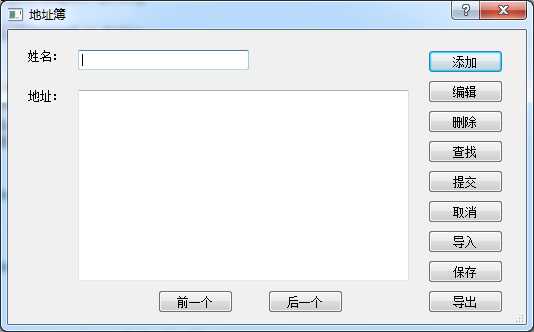

1、界面:
技术分享


2、功能简介:
程序有三种操作模式:浏览模式、添加模式、编辑模式。 其实现的功能都显式的体现在各个按钮上


3、主要步骤:
1)、在eric6中新建项目,新建窗体,取名为 addressbook.ui 文件

2)、(自动打开)进入PyQt5 Desinger,编辑图形界面,保存

3)、回到eric 6,对上一步得到的界面文件 addressbook.ui 文件右击,编译窗体,得到 Ui_addressbook.py 文件

4)、然后再对 addressbook.ui 文件右击,生成对话框代码,得到 addressbook.py 文件。(在addressbook.py中添加自己的程序逻辑)

5)、py2exe打包成exe文件(此步略)


4、涉及的知识点:
import sys, pickle

from PyQt5.QtCore import pyqtSlot, QFile, QIODevice, Qt, QTextStream
from PyQt5.QtWidgets import QWidget, QDialog, QLabel, QLineEdit, QPushButton, QHBoxLayout,  QMessageBox, QFileDialog,  QApplication



【正文】
1、一般的步骤省略不表,接上面主要步骤第二步:

在Qt设计师中,将行编辑框(lineEdit)、文本编辑框(textEdit)、及十一个按钮(pushButton)的对象名(objectName)分别设置如下:

lineEdit_name(姓名输入框)

textEdit_address(地址输入框)

pushButton_add(添加 按钮)

pushButton_edit(编辑 按钮)

pushButton_remove(删除 按钮)

pushButton_find(查找 按钮)

pushButton_submit(提交 按钮)

pushButton_cancel(取消 按钮)

pushButton_load(导入 按钮)

pushButton_save(保存 按钮)

pushButton_export(导出 按钮)

pushButton_previous(前一个 按钮)

pushButton_next(后一个 按钮)

技术分享



2、关闭Qt设计师,回到eric6

先右击addressbook.ui 文件,编译窗体,得到 Ui_addressbook.py 文件

然后再次右击addressbook.ui 文件,生成对话框代码,

在弹窗中勾选十一个按钮的 on_x_clicked() 事件,确定,得到 addressbook.py 文件。

技术分享



3、对addressbook.py 文件执行下面四步处理

1)、清空所有注释

2)、去掉一个多余的点,将

from .Ui_addressbook import Ui_Form

变成:

from Ui_addressbook import Ui_Form

3)、将所有clicked()下的代码改写为pass

    @pyqtSlot()
    def on_pushButton_add_clicked(self):
        pass

    @pyqtSlot()
    def on_pushButton_edit_clicked(self):
        pass

    # ...

4)、在 addressbook.py 文件最后面加上下面几句代码:

if __name__ == __main__:
    import sys
    from PyQt5.QtWidgets import QApplication

    app = QApplication(sys.argv)
    dlg = Dialog()
    dlg.show()
    sys.exit(app.exec_())

最后,addressbook.py 看起来是这个样子:

技术分享
 1 # -*- coding: utf-8 -*-
 2
 3 from PyQt5.QtCore import pyqtSlot
 4 from PyQt5.QtWidgets import QDialog
 5
 6 from Ui_addressbook import Ui_Dialog
 7
 8
 9 class Dialog(QDialog, Ui_Dialog):
10     def __init__(self, parent=None):
11         super(Dialog, self).__init__(parent)
12         self.setupUi(self)
13
14     @pyqtSlot()
15     def on_pushButton_add_clicked(self):
16         pass
17
18     @pyqtSlot()
19     def on_pushButton_edit_clicked(self):
20         pass
21
22     @pyqtSlot()
23     def on_pushButton_remove_clicked(self):
24         pass
25
26     @pyqtSlot()
27     def on_pushButton_find_clicked(self):
28         pass
29
30     @pyqtSlot()
31     def on_pushButton_submit_clicked(self):
32         pass
33
34     @pyqtSlot()
35     def on_pushButton_cancel_clicked(self):
36         pass
37
38     @pyqtSlot()
39     def on_pushButton_load_clicked(self):
40         pass
41
42     @pyqtSlot()
43     def on_pushButton_save_clicked(self):
44         pass
45
46     @pyqtSlot()
47     def on_pushButton_export_clicked(self):
48         pass
49
50     @pyqtSlot()
51     def on_pushButton_previous_clicked(self):
52         pass
53
54     @pyqtSlot()
55     def on_pushButton_next_clicked(self):
56         pass
57
58 if __name__ == __main__:
59     import sys
60     from PyQt5.QtWidgets import QApplication
61
62     app = QApplication(sys.argv)
63     dlg = Dialog()
64     dlg.show()
65     sys.exit(app.exec_())
View Code



4、下面添加逻辑代码

技术分享
# -*- coding: utf-8 -*-

import pickle

from PyQt5.QtCore import pyqtSlot, QFile, QIODevice, Qt, QTextStream
from PyQt5.QtWidgets import QWidget, QDialog, QLabel, QLineEdit, QPushButton, QHBoxLayout,  QMessageBox, QFileDialog


from Ui_addressbook import Ui_Dialog


class SortedDict(dict):
    class Iterator(object):
        def __init__(self, sorted_dict):
            self._dict = sorted_dict
            self._keys = sorted(self._dict.keys())
            self._nr_items = len(self._keys)
            self._idx = 0

        def __iter__(self):
            return self

        def next(self):
            if self._idx >= self._nr_items:
                raise StopIteration

            key = self._keys[self._idx]
            value = self._dict[key]
            self._idx += 1

            return key, value

        __next__ = next

    def __iter__(self):
        return SortedDict.Iterator(self)

    iterkeys = __iter__

class FindDialog(QDialog):
    def __init__(self, parent=None):
        super(FindDialog, self).__init__(parent)

        findLabel = QLabel(输入要查找的联系人姓名:)
        self.lineEdit = QLineEdit()

        self.findButton = QPushButton(查找)
        self.findText = ‘‘

        layout = QHBoxLayout()
        layout.addWidget(findLabel)
        layout.addWidget(self.lineEdit)
        layout.addWidget(self.findButton)

        self.setLayout(layout)
        self.setWindowTitle(查找联系人)

        self.findButton.clicked.connect(self.findClicked)
        self.findButton.clicked.connect(self.accept)

    def findClicked(self):
        text = self.lineEdit.text()

        if not text:
            QMessageBox.information(self, 姓名不能为空, 请输入一个姓名)
            return

        self.findText = text
        self.lineEdit.clear()
        self.hide()

    def getFindText(self):
        return self.findText


class Dialog(QDialog, Ui_Dialog):
    NavigationMode, AddingMode, EditingMode = range(3)

    def __init__(self, parent=None):
        super(Dialog, self).__init__(parent)
        self.setupUi(self)

        self.pushButton_submit.hide()
        self.pushButton_cancel.hide()

        self.contacts = SortedDict()
        self.oldName = ‘‘
        self.oldAddress = ‘‘
        self.currentMode = self.NavigationMode

        self.dialog = FindDialog()

    @pyqtSlot()
    def on_pushButton_add_clicked(self):
        self.oldName = self.lineEdit_name.text()
        self.oldAddress = self.textEdit_address.toPlainText()

        self.lineEdit_name.clear()
        self.textEdit_address.clear()

        self.updateInterface(self.AddingMode)

    @pyqtSlot()
    def on_pushButton_edit_clicked(self):
        self.oldName = self.lineEdit_name.text()
        self.oldAddress = self.textEdit_address.toPlainText()

        self.updateInterface(self.EditingMode)

    @pyqtSlot()
    def on_pushButton_remove_clicked(self):
        name = self.lineEdit_name.text()
        address = self.textEdit_address.toPlainText()

        if name in self.contacts:
            button = QMessageBox.question(self, 确定删除,你真的确定要删除 {} 吗?.format(name), QMessageBox.Yes | QMessageBox.No)

            if button == QMessageBox.Yes:
                self.on_pushButton_previous_clicked()
                del self.contacts[name]

                QMessageBox.information(self, 删除成功,{}已经从你的地址簿删除了!.format(name))

        self.updateInterface(self.NavigationMode)

    @pyqtSlot()
    def on_pushButton_find_clicked(self):
        self.dialog.show()

        if self.dialog.exec_() == QDialog.Accepted:
            contactName = self.dialog.getFindText()

            if contactName in self.contacts:
                self.lineEdit_name.setText(contactName)
                self.textEdit_address.setText(self.contacts[contactName])
            else:
                QMessageBox.information(self, 找不到,抱歉,{}不在你的地址簿内!.format(contactName))
                return

        self.updateInterface(self.NavigationMode)

    @pyqtSlot()
    def on_pushButton_submit_clicked(self):
        name = self.lineEdit_name.text()
        address = self.textEdit_address.toPlainText()

        if name == "" or address == "":
            QMessageBox.information(self, 不能为空, 请输入姓名及地址!)
            return

        if self.currentMode == self.AddingMode:
            if name not in self.contacts:
                self.contacts[name] = address
                QMessageBox.information(self, 添加成功, {} 已经添加到你的地址簿!.format(name))
            else:
                QMessageBox.information(self, 添加失败, {} 已经存在于你的地址簿!.format(name))
                return

        elif self.currentMode == self.EditingMode:
            if self.oldName != name:
                if name not in self.contacts:
                    QMessageBox.information(self, 编辑成功,{} 已经被编辑到你的地址簿!.format(self.oldName))

                    del self.contacts[self.oldName]
                    self.contacts[name] = address
                else:
                    QMessageBox.information(self, 编辑失败,抱歉,{} 已经存在于你的地址簿!.format(name))
                    return
            elif self.oldAddress != address:
                QMessageBox.information(self, 编辑成功,{} 已经被编辑到你的地址簿!.format(name))
                self.contacts[name] = address

        self.updateInterface(self.NavigationMode)

    @pyqtSlot()
    def on_pushButton_cancel_clicked(self):
        self.lineEdit_name.setText(self.oldName)
        self.textEdit_address.setText(self.oldAddress)

        self.updateInterface(self.NavigationMode)

    @pyqtSlot()
    def on_pushButton_load_clicked(self):
        fileName, _ = QFileDialog.getOpenFileName(self, 打开地址簿, ‘‘, 地址簿文件 (*.abk);;所有文件 (*))

        if not fileName:
            return

        try:
            in_file = open(str(fileName), rb)
        except IOError:
            QMessageBox.information(self, 不能打开文件,打开文件 {} 时发生错误!.format(fileName))
            return

        self.contacts = pickle.load(in_file)
        in_file.close()

        if len(self.contacts) == 0:
            QMessageBox.information(self, 文件中无联系人,你打开的文件中无联系人!)
        else:
            for name, address in self.contacts:
                self.lineEdit_name.setText(name)
                self.textEdit_address.setText(address)

        self.updateInterface(self.NavigationMode)

    @pyqtSlot()
    def on_pushButton_save_clicked(self):
        fileName, _ = QFileDialog.getSaveFileName(self, 保存地址簿, ‘‘, 地址簿文件 (*.abk);;所有文件 (*))

        if not fileName:
            return

        try:
            out_file = open(str(fileName), wb)
        except IOError:
            QMessageBox.information(self, 不能打开文件,打开文件 {} 时发生错误!.format(fileName))
            return

        pickle.dump(self.contacts, out_file)
        out_file.close()

    @pyqtSlot()
    def on_pushButton_export_clicked(self):
        name = str(self.lineEdit_name.text())
        address = self.textEdit_address.toPlainText()

        nameList = name.split()

        if len(nameList) > 1:
            firstName = nameList[0]
            lastName = nameList[-1]
        else:
            firstName = name
            lastName = ‘‘

        fileName, _ = QFileDialog.getSaveFileName(self, 导出联系, ‘‘, vCard 文件 (*.vcf);;所有文件 (*))

        if not fileName:
            return

        out_file = QFile(fileName)

        if not out_file.open(QIODevice.WriteOnly):
            QMessageBox.information(self, 不能打开文件, out_file.errorString())
            return

        out_s = QTextStream(out_file)

        out_s << BEGIN:VCARD << \n
        out_s << VERSION:2.1 << \n
        out_s << N: << lastName << ; << firstName << \n
        out_s << FN: <<  .join(nameList) << \n

        address.replace(;, \\;)
        address.replace(\n, ;)
        address.replace(,,  )

        out_s << ADR;HOME:; << address << \n
        out_s << END:VCARD << \n

        QMessageBox.information(self, 导出成功,{} 已经被导出为 vCard !.format(name))

    @pyqtSlot()
    def on_pushButton_previous_clicked(self):
        name = self.lineEdit_name.text()

        prev_name = prev_address = None
        for this_name, this_address in self.contacts:
            if this_name == name:
                break

            prev_name = this_name
            prev_address = this_address
        else:
            self.lineEdit_name.clear()
            self.textEdit_address.clear()
            return

        if prev_name is None:
            for prev_name, prev_address in self.contacts:
                pass

        self.lineEdit_name.setText(prev_name)
        self.textEdit_address.setText(prev_address)

    @pyqtSlot()
    def on_pushButton_next_clicked(self):
        name = self.lineEdit_name.text()
        it = iter(self.contacts)

        try:
            while True:
                this_name, _ = it.next()

                if this_name == name:
                    next_name, next_address = it.next()
                    break
        except StopIteration:
            next_name, next_address = iter(self.contacts).next()

        self.lineEdit_name.setText(next_name)
        self.textEdit_address.setText(next_address)

    def updateInterface(self, mode):
        self.currentMode = mode

        if self.currentMode in (self.AddingMode, self.EditingMode):
            self.lineEdit_name.setReadOnly(False)
            self.lineEdit_name.setFocus(Qt.OtherFocusReason)
            self.textEdit_address.setReadOnly(False)

            self.pushButton_add.setEnabled(False)
            self.pushButton_edit.setEnabled(False)
            self.pushButton_remove.setEnabled(False)

            self.pushButton_next.setEnabled(False)
            self.pushButton_previous.setEnabled(False)

            self.pushButton_submit.show()
            self.pushButton_cancel.show()

            self.pushButton_load.setEnabled(False)
            self.pushButton_save.setEnabled(False)
            self.pushButton_export.setEnabled(False)

        elif self.currentMode == self.NavigationMode:
            if not self.contacts:
                self.lineEdit_name.clear()
                self.textEdit_address.clear()

            self.lineEdit_name.setReadOnly(True)
            self.textEdit_address.setReadOnly(True)
            self.pushButton_add.setEnabled(True)

            number = len(self.contacts)
            self.pushButton_edit.setEnabled(number >= 1)
            self.pushButton_remove.setEnabled(number >= 1)
            self.pushButton_find.setEnabled(number > 2)
            self.pushButton_next.setEnabled(number > 1)
            self.pushButton_previous.setEnabled(number >1 )

            self.pushButton_submit.hide()
            self.pushButton_cancel.hide()

            self.pushButton_export.setEnabled(number >= 1)

            self.pushButton_load.setEnabled(True)
            self.pushButton_save.setEnabled(number >= 1)

if __name__ == __main__:
    import sys
    from PyQt5.QtWidgets import QApplication

    app = QApplication(sys.argv)
    dlg = Dialog()
    dlg.show()
    sys.exit(app.exec_())
View Code



5、程序运行界面

技术分享



技术分享



技术分享



用 eric6 与 PyQt5 实现python的极速GUI编程(系列04)---- PyQt5自带教程:地址簿(address book)

标签:des   class   style   代码   com   log   src   文件   http

原文:http://www.cnblogs.com/hhh5460/p/4237766.html

(0)
(4)

举报
评论 一句话评论(0
0条
登录后才能评论!
© 2014 bubuko.com 版权所有 鲁ICP备09046678号-4
打开技术之扣,分享程序人生!


鲁公网安备 37021202000002号
