基于百度云推送的实时通信客户端实现（二）

时间：2014-03-07 05:15:50 阅读：687 评论：0 收藏：0 [点我收藏+]

上一篇说了欢迎和登陆界面的实现，现在来说一下关于聊天界面的搭建，整体界面采用了一个ListView，主要的布局很简单，在这里使用了ListView自定义是Adapter的写法

同时，我构造了一个TaliListInfo的类来和Adapter对应

闲话不多说，直接上代码

 1 package com.demo.Adapter;
 2
 3 public class TalkListInfo {
 4
 5     private String name;
 6     private String date;
 7     private String item;
 8     private int isNew;
 9
10     public String getName() {
11         return name;
12     }
13
14     public void setName(String name) {
15         this.name = name;
16     }
17
18     public String getDate() {
19         return date;
20     }
21
22     public void setDate(String date) {
23         this.date = date;
24     }
25
26     public String getItem() {
27         return item;
28     }
29
30     public void setItem(String item) {
31         this.item = item;
32     }
33
34     public int getIsNew() {
35         return isNew;
36     }
37
38     public void setIsNew(int isNew) {
39         this.isNew = isNew;
40     }
41
42     public TalkListInfo() {
43     }
44
45     public TalkListInfo(String name, String date, String item, int isNew) {
46         this.name = name;
47         this.date = date;
48         this.isNew = isNew;
49         this.item = item;
50     }
51
52 }

Adapter的构造过程

package com.demo.Adapter;

import java.util.List;

import com.tuisong.R;

import android.content.Context;
import android.database.DataSetObserver;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.LinearLayout;
import android.widget.TextView;

public class NewAdapterView extends BaseAdapter {

    @SuppressWarnings("unused")
    private static final String TAG = NewAdapterView.class.getSimpleName();

    private List<MessageEnity> coll;

    private Context context;

    // 构造函数
    public NewAdapterView(Context context, List<MessageEnity> list) {
        this.context = context;
        this.coll = list;
    }

    public boolean areAllItemsEnabled() {
        return false;
    }

    public boolean isEnabled(int arg0) {
        return false;
    }

    @Override
    public int getCount() {
        // TODO Auto-generated method stub
        return coll.size();
    }

    @Override
    public Object getItem(int arg0) {
        // TODO Auto-generated method stub
        return coll.get(arg0);
    }

    @Override
    public long getItemId(int arg0) {
        // TODO Auto-generated method stub
        return arg0;
    }

    public int getItemViewType(int position) {
        return position;
    }

    @Override
    public View getView(int positon, View convertView, ViewGroup parent) {
        // TODO Auto-generated method stub
        MessageEnity entity = coll.get(positon);
        int itemLayout = entity.getLayoutID();

        LinearLayout layout = new LinearLayout(context);
        LayoutInflater inflater = (LayoutInflater) context
                .getSystemService(Context.LAYOUT_INFLATER_SERVICE);
        inflater.inflate(itemLayout, layout, true);

        TextView tvName = (TextView) layout.findViewById(R.id.person_name);
        tvName.setText(entity.getfromUser());

        TextView tvData = (TextView) layout.findViewById(R.id.time_say);
        tvData.setText(entity.getTime());

        TextView tvItem = (TextView) layout.findViewById(R.id.item_say);
        tvItem.setText(entity.getItem());

        return layout;
    }

    public int getViewTypeCount() {
        return coll.size();
    }

    public boolean hasStableIds() {
        return false;
    }

    public boolean isEmpty() {
        return false;
    }

    public void registerDataSetObserver(DataSetObserver observer) {
    }

    public void unregisterDataSetObserver(DataSetObserver observer) {
    }

}

同时，还需要写一个对应的布局来作为ListView的Adapter的布局

 1 <?xml version="1.0" encoding="utf-8"?>
 2 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 3     xmlns:tools="http://schemas.android.com/tools"
 4     android:layout_width="fill_parent"
 5     android:layout_height="wrap_content"
 6     android:background="#eeeeee"
 7     android:orientation="horizontal"
 8     tools:context="com.baidu.push.example.CustomActivity" >
 9
10     <ImageView
11         android:layout_width="64dp"
12         android:layout_height="64dp"
13         android:background="@drawable/retouxiang"
14         android:contentDescription="@string/app_name"
15         android:scaleType="fitXY" />
16
17     <LinearLayout
18         android:layout_width="fill_parent"
19         android:layout_height="64dp"
20         android:orientation="vertical" >
21
22         <LinearLayout
23             android:layout_width="fill_parent"
24             android:layout_height="32dp"
25             android:orientation="horizontal" >
26
27             <TextView
28                 android:id="@+id/tv_name"
29                 android:layout_width="0dp"
30                 android:layout_height="32dp"
31                 android:layout_weight="1"
32                 android:text="@string/app_name"
33                 android:textColor="#000000" />
34
35             <TextView
36                 android:id="@+id/tv_time"
37                 android:layout_width="0dp"
38                 android:layout_height="32dp"
39                 android:layout_weight="1"
40                 android:text="@string/app_name"
41                 android:textColor="#000000" />
42         </LinearLayout>
43
44         <TextView
45             android:id="@+id/tv_item"
46             android:layout_width="fill_parent"
47             android:layout_height="32dp"
48             android:text="@string/app_name"
49             android:textColor="#000000" />
50     </LinearLayout>
51
52 </LinearLayout>

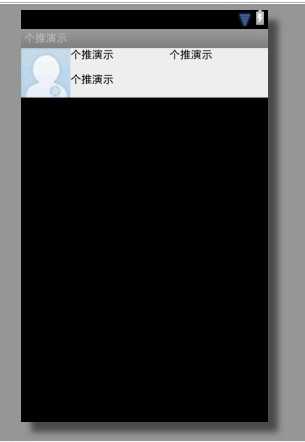

同时，因为只是个Demo，我的头像没有下载的功能，采用了一个空白的头像图片，取消了下载功能，效果如图

bubuko.com,布布扣

同时，因为聊天记录保存在SQLite中，所以，需要自己实现一个DBhelper的类继承SQLiteOpenHelper，代码如下：

  1 package com.tuisong.db;
  2
  3 import java.util.ArrayList;
  4 import java.util.HashSet;
  5 import java.util.List;
  6 import com.demo.Adapter.MessageEnity;
  7 import com.demo.Adapter.TalkListInfo;
  8
  9 import android.annotation.SuppressLint;
 10 import android.content.ContentValues;
 11 import android.content.Context;
 12 import android.database.Cursor;
 13 import android.database.sqlite.SQLiteDatabase;
 14 import android.database.sqlite.SQLiteOpenHelper;
 15
 16 public class DBHelpter extends SQLiteOpenHelper {
 17
 18     private final static String DATABASE_NAME = "chat_record_db";
 19     private final static String TABLE_NAME = "chat_table";
 20     private final static String FROM_USER = "fromuser";
 21     private final static String TO_USER = "touser";
 22     private final static String TIME = "time";
 23     private final static String CHAT_CONTENT = "content";
 24     private final static String LAYOUT_ID = "layoutid";
 25     @SuppressWarnings("unused")
 26     private final static String CHAT_ID = "id";
 27     private String openid = null;
 28     public DBHelpter help;
 29
 30     @SuppressLint("NewApi")
 31     public DBHelpter(Context context) {
 32         super(context, DATABASE_NAME, null, 1);
 33         System.out.println("the data has been created");
 34         // TODO Auto-generated constructor stub
 35     }
 36
 37     @Override
 38     public void onCreate(SQLiteDatabase db) {
 39         // TODO Auto-generated method stub
 40         String sql = "CREATE TABLE if not exists  chat_table ( id  INTEGER PRIMARY KEY  AUTOINCREMENT, fromuser TEXT,   touser   TEXT,   time  TEXT, content TEXT, layoutid TEXT);";
 41
 42         db.execSQL(sql);
 43         System.out.println(sql);
 44     }
 45
 46     //更新数据库，因为我没有数据的修改，所以不需要实现此方法
 47     @Override
 48     public void onUpgrade(SQLiteDatabase db, int arg1, int arg2) {
 49         // TODO Auto-generated method stub
 50         // db.execSQL("drop table if exists" + TABLE_NAME);
 51
 52         // onCreate(db);
 53     }
 54     //插入数据
 55     public void Insert(MessageEnity message) {
 56         SQLiteDatabase db = this.getWritableDatabase();
 57         ContentValues value = new ContentValues();
 58         value.put(FROM_USER, message.getfromUser());
 59         value.put(TO_USER, message.gettomUser());
 60         value.put(TIME, message.getTime());
 61         value.put(CHAT_CONTENT, message.getItem());
 62         value.put(LAYOUT_ID, message.getLayoutID());
 63
 64         long ss = db.insert(TABLE_NAME, null, value);
 65         System.out.println("has been insert in db " + ss);
 66     }
 67
 68     // 消息内容
 69     public List<MessageEnity> findPersonMessage(String openid, String userid) {
 70         List<MessageEnity> messages = new ArrayList<MessageEnity>();
 71         SQLiteDatabase db = this.getReadableDatabase();
 72         System.out.println("dsdfsw" + db.toString());
 73
 74         String sql = "select * from chat_table where (fromuser=‘" + openid
 75                 + "‘ and touser=‘" + userid + "‘) or (touser=‘" + openid
 76                 + "‘ and fromuser=‘" + userid + "‘) order by time ";
 77         Cursor cursor = db.rawQuery(sql, null);
 78         cursor.moveToFirst();
 79         System.out.println("the find message is " + cursor.getCount());
 80         if (cursor.getCount() > 0) {
 81             if (cursor.getCount() > 10) {
 82                 cursor.moveToPosition(cursor.getCount() - 10);
 83                 for (int i = 0; i < 10; i++) {
 84                     MessageEnity message = new MessageEnity();
 85                     message.setfroUser(cursor.getString(cursor
 86                             .getColumnIndex(FROM_USER)));
 87                     message.setItem(cursor.getString(cursor
 88                             .getColumnIndex(CHAT_CONTENT)));
 89                     message.setLayoutID(cursor.getInt(cursor
 90                             .getColumnIndex(LAYOUT_ID)));
 91                     message.setTime(cursor.getString(cursor
 92                             .getColumnIndex(TIME)));
 93                     message.settoUser(cursor.getString(cursor
 94                             .getColumnIndex(TO_USER)));
 95                     messages.add(message);
 96                     cursor.moveToNext();
 97                 }
 98             } else {
 99                 cursor.moveToFirst();
100                 for (int i = 0; i < cursor.getCount(); i++) {
101                     MessageEnity message = new MessageEnity();
102                     message.setfroUser(cursor.getString(cursor
103                             .getColumnIndex(FROM_USER)));
104                     message.setItem(cursor.getString(cursor
105                             .getColumnIndex(CHAT_CONTENT)));
106                     message.setLayoutID(cursor.getInt(cursor
107                             .getColumnIndex(LAYOUT_ID)));
108                     message.setTime(cursor.getString(cursor
109                             .getColumnIndex(TIME)));
110                     message.settoUser(cursor.getString(cursor
111                             .getColumnIndex(TO_USER)));
112                     messages.add(message);
113                     cursor.moveToNext();
114                 }
115             }
116             return messages;
117         } else {
118             return null;
119         }
120
121     }
122
123     // 列出消息列表
124     public List<TalkListInfo> findList(String touser) {
125         List<TalkListInfo> infos = new ArrayList<TalkListInfo>();
126         SQLiteDatabase db = this.getReadableDatabase();
127         System.out.println("the ver sion is" + db.getVersion());
128         String sql = "select fromuser, time , content,count(distinct fromuser) from chat_table where touser=‘"
129                 + touser + "‘ group by fromuser order by time desc";
130         // Cursor cursor = db.query(TABLE_NAME, new String[] { FROM_USER, TIME,
131         // CHAT_CONTENT }, null, null, null, null, TIME);
132         Cursor cursor = db.rawQuery(sql, null);
133         System.out.println("the ver num is" + cursor.getCount());
134         cursor.moveToFirst();
135         if (cursor.getCount() > 0) {
136             System.out.println("the tag num ");
137             for (int i = 0; i < cursor.getCount(); i++) {
138
139                 if (cursor.getString(cursor.getColumnIndex(FROM_USER)).equals(
140                         openid) != true) {
141                     TalkListInfo info = new TalkListInfo();
142
143                     info.setName(cursor.getString(cursor
144                             .getColumnIndex(FROM_USER)));
145
146                     info.setDate(cursor.getString(cursor.getColumnIndex(TIME)));
147                     info.setItem(cursor.getString(cursor
148                             .getColumnIndex(CHAT_CONTENT)));
149
150                     infos.add(info);
151                     cursor.moveToNext();
152                 }
153             }
154
155             System.out.println("tag2");
156             removeDuplicate(infos);
157             return infos;
158         } else {
159             System.out.println("tag3");
160             return infos;
161         }
162
163     }
164
165     public static void removeDuplicate(List<TalkListInfo> list) {
166         HashSet<TalkListInfo> h = new HashSet<TalkListInfo>(list);
167         list.clear();
168         list.addAll(h);
169         System.out.println(list);
170     }
171
172 }

DBHelper.java

好了到了这里，准备工作已经基本完成了，现在就要编写界面的后台代码了

  1 package com.baidu.push.example;
  2
  3 import java.util.ArrayList;
  4 import java.util.HashMap;
  5 import java.util.List;
  6 import java.util.Map;
  7
  8 import com.baidu.android.pushservice.PushConstants;
  9 import com.baidu.android.pushservice.PushManager;
 10 import com.demo.Adapter.ListAdapter;
 11 import com.demo.Adapter.TalkListInfo;
 12 import com.tuisong.R;
 13 import com.tuisong.Save_Read;
 14 import com.tuisong.Until;
 15 import com.tuisong.db.DBHelpter;
 16
 17 import android.app.Activity;
 18 import android.app.NotificationManager;
 19 import android.content.BroadcastReceiver;
 20 import android.content.Context;
 21 import android.content.Intent;
 22 import android.content.SharedPreferences;
 23 import android.os.Bundle;
 24 import android.view.Menu;
 25 import android.view.MenuItem;
 26 import android.view.View;
 27 import android.widget.AdapterView.OnItemClickListener;
 28 import android.widget.AdapterView;
 29 import android.widget.ListView;
 30 import android.widget.RelativeLayout;
 31
 32 public class PushDemoActivity extends Activity implements OnItemClickListener {
 33
 34     private static ListView list;
 35     private static List<TalkListInfo> talk;
 36     private static ListAdapter adapter;
 37     RelativeLayout mainLayout = null;
 38     public static int initialCnt = 0;
 39     public Save_Read save = new Save_Read();
 40     public static Map<String, String> map;
 41     public static DBHelpter help;
 42     public static String userid;
 43     public SharedPreferences sp;
 44     public static NotificationManager manager;
 45
 46     @Override
 47     public void onCreate(Bundle savedInstanceState) {
 48         super.onCreate(savedInstanceState);
 49
 50         setContentView(R.layout.main);
 51         @SuppressWarnings("unused")
 52         NotificationManager manager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE);
 53         @SuppressWarnings("unused")
 54         MyReceiver receiver = new MyReceiver();
 55         sp = this.getSharedPreferences("key", 0);
 56         SharedPreferences.Editor edtior = sp.edit();
 57         edtior.putString("SSP", "1");
 58         edtior.commit();
 59
 60         list = (ListView) findViewById(R.id.list);
 61         help = new DBHelpter(this);
 62         map = new HashMap<String, String>();
 63
 64         userid = sp.getString("Login", null);
 65         System.out.println("the  login  id is " + userid);
 66
 67         talk = new ArrayList<TalkListInfo>();
 68
 69         talk = help.findList(userid);
 70
 71         if (talk != null) {
 72             for (TalkListInfo t : talk) {
 73
 74                 map.put("name", t.getName());
 75                 map.put("time", t.getDate());
 76                 map.put("content", t.getItem());
 77             }
 78             adapter = new ListAdapter(this, talk);
 79             list.setAdapter(adapter);
 80         }
 81
 82         list.setOnItemClickListener(new OnItemClickListener() {
 83
 84             @Override
 85             public void onItemClick(AdapterView<?> arg0, View arg1, int arg2,
 86                     long arg3) {
 87                 // TODO Auto-generated method stub
 88                 Intent intent = new Intent(PushDemoActivity.this,
 89                         TalkActivity.class);
 90                 intent.putExtra("name", talk.get(arg2).getName());
 91                 intent.putExtra("userid", userid);
 92                 Until.setString(talk.get(arg2).getName());
 93                 startActivity(intent);
 94
 95             }
 96         });
 97
 98         // 以apikey的方式登录，一般放在主Activity的onCreate中
 99         PushManager.startWork(getApplicationContext(),
100                 PushConstants.LOGIN_TYPE_API_KEY,
101                 Utils.getMetaValue(PushDemoActivity.this, "api_key"));
102
103     }
104
105     @Override
106     public void onStart() {
107         super.onStart();
108
109     }
110
111     @Override
112     public void onResume() {
113         super.onResume();
114
115         SharedPreferences.Editor edtior = sp.edit();
116         edtior.putString("SSP", "0");
117         edtior.commit();
118
119     }
120
121     @Override
122     protected void onNewIntent(Intent intent) {
123         // 如果要统计Push引起的用户使用应用情况，请实现本方法，且加上这一个语句
124         setIntent(intent);
125
126     }
127
128     @Override
129     protected void onPause() {
130         // TODO Auto-generated method stub
131         super.onPause();
132
133         SharedPreferences.Editor edtior = sp.edit();
134         edtior.putString("SSP", "0");
135         edtior.commit();
136     }
137
138     @Override
139     public void onStop() {
140         super.onStop();
141         PushManager.activityStoped(this);
142         // SharedPreferences.Editor edtior = sp.edit();
143         // edtior.putString("Login", "-1");
144         // edtior.commit();
145         // }
146     }
147
148     @Override
149     protected void onDestroy() {
150         // TODO Auto-generated method stub
151         super.onDestroy();
152         // SharedPreferences.Editor edtior = sp.edit();
153         // edtior.putString("Login", "-1");
154         // edtior.commit();
155     }
156
157     @Override
158     public void onItemClick(AdapterView<?> arg0, View arg1, int arg2, long arg3) {
159         // TODO Auto-generated method stub
160
161     }
162
163     public boolean onCreateOptionsMenu(Menu menu) {
164         // 调用父类方法来加入系统菜单
165         // 虽然目前android还没有系统菜单，但是为了兼容到以后的版本，最好加上
166         super.onCreateOptionsMenu(menu);
167
168         // 添加菜单项（多种方式）
169         // 1.直接指定标题
170         menu.add(1, 0, 1, "退出");
171
172         // 3.显示指定菜单项的组号、ID、排序号、标题
173
174         // 如果希望显示菜单，请返回true
175         return true;
176     }
177
178     @Override
179     public boolean onOptionsItemSelected(MenuItem item) {
180         switch (item.getItemId()) {
181         // 响应每个菜单项(通过菜单项的ID)
182
183         case 0:
184             change();
185             finish();
186             // do something here
187             break;
188         default:
189             // 对没有处理的事件，交给父类来处理
190             return super.onOptionsItemSelected(item);
191         }
192         // 返回true表示处理完菜单项的事件，不需要将该事件继续传播下去了
193         return true;
194     }
195
196
197     //修改当前活动activity的状态
198     public void change() {
199         SharedPreferences.Editor edtior = sp.edit();
200         edtior.putString("Login", "-1");
201         edtior.commit();
202     }
203 }

PushDEmoActivity.java

到这里，对话列表的界面搭建已经完成了，下一篇文章里面介绍聊天界面写法

基于百度云推送的实时通信客户端实现（二）,布布扣,bubuko.com

基于百度云推送的实时通信客户端实现（二）

原文：http://www.cnblogs.com/cwr941012/p/3585246.html

踩

(0)

评论一句话评论（0）

分享档案

更多>

2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
