K60用IRA通过j-link下载失败,解决方法

时间:2015-03-20 20:02:23      阅读:12521      评论:0      收藏:0      [点我收藏+]

K60在用飞思卡尔原厂的例程时,例程编译时没有问题,但是烧写时不成功,出现以下提示,请问该如何解决这个问题?
提示1.Miss or malformed flash loader specification file : C:\Program Files\IAR Systems\Embeded Workbeach 6.4 Evaluation\arm\config\flashloader\freescale\flashk70xxx.board
提示2. The debugging session could not be started.Either the debugger intialization failed,or else the file"C:\Users\Think\Desktop\KINETIS_120MHZ_SC\KINETIS_120MHZ_SC\build\iar\crc_demo\FLASH_1M\Exe\crc_demo_k70_
tower.out" was corrupt or of an unsupported format.
     There might be more information in the Debug Log window.
提示3.Wed Jul 03, 2013 10:38:23: Missing or malformed flash loader specification file: C:\Program Files\IAR Systems\Embedded Workbench 6.4 Evaluation\arm\config\flashloader\Freescale\FlashK70Xxxx.board



解决方法:1.选择【FlashK70Fxxx128K.board】文件替代之前的【FlashK70Xxxx.board】。

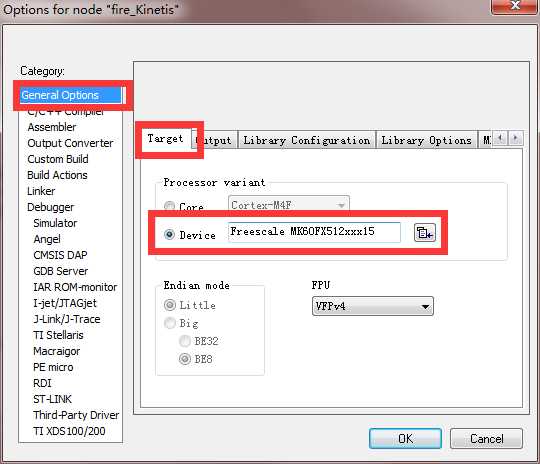

      2.项目设置中的板子型号要选择正确

技术分享

      3.其他。。。。。

参考自飞思卡尔K70下载程序出错该如何解决(已解决)



K60用IRA通过j-link下载失败,解决方法

原文:http://www.cnblogs.com/timace/p/4354255.html
