树的子结构

时间:2014-03-22 21:52:05      阅读:543      评论:0      收藏:0      [点我收藏+]

题目

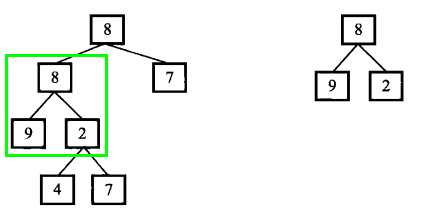

输入两颗二叉树A和B,判断B是否是A的子结构,例如下图中B是A的子结构

bubuko.com,布布扣

              A                                                        B

思路

判断B是A的一部分,首先保证B的根节点的值与A中的某结点的值相同,在保证孩子结点也相同。

首先判断给定的树A,B中的两个指针pa, pb,判断pb的整体是不是以pa为根节点的一部分,采用的是递归做法

  • 如果pb == NULL, 返回true
  • 否则(pb != NULL),如果pa == NULL, 返归false
  • 否则(pa != NULL && pb != NULL), 如果pa、pb指向的值是不同,返回false;否则(pa、pb指向的值相同),pa、pb的孩子结点同时满足相同才返回true

参考代码

bubuko.com,布布扣
bool IsPart(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    if(p2 == NULL)
        return true;
    else if(p1 == NULL)
        return false;
    else
    {
        if(p1->m_nValue != p2->m_nValue)
            return false;
        else if(IsPart(p1->m_pLeft, p2->m_pLeft) && IsPart(p1->m_pRight, p2->m_pRight))
            return true;
    }
}
bubuko.com,布布扣

接着是B的头结点和A的结点对比一下,如果和A中的一个结点能得出B是A的一部分(即IsPart(pa, pb)=true)那么就可得出B是A中的一部分。

访问A中的结点,可以参考访问二叉树的递归遍历

bubuko.com,布布扣
void MidTranverse(BinaryTreeNode *root)
{
    if(root != NULL)
    {
        MidTranverse(root->m_pLeft);
        cout << root->m_nValue << " ";
        MidTranverse(root->m_pRight);
    }
}
bubuko.com,布布扣

但是这样在输出的位置,判断IsPart,结果怎么处置,我采用的方式是利用全局变量ISPART,起初是设为false,如果判断出IsPart(pa, pb),就置ISPART=true。

参考代码1

bubuko.com,布布扣
bool HasPartTree(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    if(p2 == NULL)
        return false;
    if(p1 != NULL)
    {
        HasPartTree(p1->m_pLeft, p2);
        if(IsPart(p1, p2))
            ISPART = true;   //全局变量
        HasPartTree(p1->m_pRight, p2);
    }
    return false;
}
bubuko.com,布布扣

整体运行

bubuko.com,布布扣
#include <iostream>
using namespace std;
bool ISPART = false;
struct BinaryTreeNode
{
    int m_nValue;
    BinaryTreeNode *m_pLeft;
    BinaryTreeNode *m_pRight;
};
void CreateTree1(BinaryTreeNode *root)
{
    BinaryTreeNode *p1 = new(BinaryTreeNode);
    p1->m_nValue = 8;
    p1->m_pLeft = NULL;
    p1->m_pRight = NULL;
    root->m_pLeft = p1;

    BinaryTreeNode *p2 = new(BinaryTreeNode);
    p2->m_nValue = 7;
    p2->m_pLeft = NULL;
    p2->m_pRight = NULL;
    root->m_pRight = p2;

    BinaryTreeNode *p3 = new(BinaryTreeNode);
    p3->m_nValue = 9;
    p3->m_pLeft = NULL;
    p3->m_pRight = NULL;
    p1->m_pLeft = p3;

    BinaryTreeNode *p4 = new(BinaryTreeNode);
    p4->m_nValue = 2;
    p4->m_pLeft = NULL;
    p4->m_pRight = NULL;
    p1->m_pRight = p4;

    BinaryTreeNode *p5 = new(BinaryTreeNode);
    p5->m_nValue = 4;
    p5->m_pLeft = NULL;
    p5->m_pRight = NULL;
    p4->m_pLeft = p5;

    BinaryTreeNode *p6 = new(BinaryTreeNode);
    p6->m_nValue = 7;
    p6->m_pLeft = NULL;
    p6->m_pRight = NULL;
    p4->m_pRight = p6;
}
void CreateTree2(BinaryTreeNode *root)
{
    BinaryTreeNode *p1 = new(BinaryTreeNode);
    p1->m_nValue = 9;
    p1->m_pLeft = NULL;
    p1->m_pRight = NULL;
    root->m_pLeft = p1;

    BinaryTreeNode *p2 = new(BinaryTreeNode);
    p2->m_nValue = 2;
    p2->m_pLeft = NULL;
    p2->m_pRight = NULL;
    root->m_pRight = p2;
}
void MidTranverse(BinaryTreeNode *root)
{
    if(root != NULL)
    {
        MidTranverse(root->m_pLeft);
        cout << root->m_nValue << " ";
        MidTranverse(root->m_pRight);
    }
}

void DeleteTree(BinaryTreeNode *root)
{
    if(root != NULL)
    {
        DeleteTree(root->m_pLeft);
        DeleteTree(root->m_pRight);
        delete(root);
        root = NULL;
    }
}

bool IsPart(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    if(p2 == NULL)
        return true;
    else if(p1 == NULL)
        return false;
    else
    {
        if(p1->m_nValue != p2->m_nValue)
            return false;
        else if(IsPart(p1->m_pLeft, p2->m_pLeft) && IsPart(p1->m_pRight, p2->m_pRight))
            return true;
    }
}

bool HasPartTree(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    if(p2 == NULL)
        return false;
    if(p1 != NULL)
    {
        HasPartTree(p1->m_pLeft, p2);
        if(IsPart(p1, p2))
            ISPART = true;
        HasPartTree(p1->m_pRight, p2);
    }
    return false;
}

int main()
{
    BinaryTreeNode *tree_1 = new(BinaryTreeNode);
    BinaryTreeNode *tree_2 = new(BinaryTreeNode);
    tree_1->m_nValue = 8;
    tree_1->m_pLeft = NULL;
    tree_1->m_pRight = NULL;
    tree_2->m_nValue = 8;
    tree_2->m_pLeft = NULL;
    tree_2->m_pRight = NULL;

    CreateTree1(tree_1);
    CreateTree2(tree_2);
    HasPartTree(tree_1, tree_2);
    ISPART = false;
    cout << "ISPAET:" << ISPART << endl;
    DeleteTree(tree_1);
    DeleteTree(tree_2);
    /*
    MidTranverse(tree_1);
    cout << endl;
    MidTranverse(tree_2);
    cout << endl;
    */
}
View Code



参考了《剑指offer》的做法,仍然是递归,不采用全局变量的做法

参考代码2

bubuko.com,布布扣
bool HasPartTree(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    bool result = false;
    if(p1 != NULL && p2 != NULL)
    {
        if(p1->m_nValue == p2->m_nValue)
            result = IsPart(p1, p2);
        if(!result)
            result = HasPartTree(p1->m_pLeft, p2);
        if(!result)
            result = HasPartTree(p1->m_pRight, p2);
    }
    return result;
}
bubuko.com,布布扣

整体运行

bubuko.com,布布扣
#include <iostream>
using namespace std;
struct BinaryTreeNode
{
    int m_nValue;
    BinaryTreeNode *m_pLeft;
    BinaryTreeNode *m_pRight;
};
void CreateTree1(BinaryTreeNode *root)
{
    BinaryTreeNode *p1 = new(BinaryTreeNode);
    p1->m_nValue = 8;
    p1->m_pLeft = NULL;
    p1->m_pRight = NULL;
    root->m_pLeft = p1;

    BinaryTreeNode *p2 = new(BinaryTreeNode);
    p2->m_nValue = 7;
    p2->m_pLeft = NULL;
    p2->m_pRight = NULL;
    root->m_pRight = p2;

    BinaryTreeNode *p3 = new(BinaryTreeNode);
    p3->m_nValue = 9;
    p3->m_pLeft = NULL;
    p3->m_pRight = NULL;
    p1->m_pLeft = p3;

    BinaryTreeNode *p4 = new(BinaryTreeNode);
    p4->m_nValue = 2;
    p4->m_pLeft = NULL;
    p4->m_pRight = NULL;
    p1->m_pRight = p4;

    BinaryTreeNode *p5 = new(BinaryTreeNode);
    p5->m_nValue = 4;
    p5->m_pLeft = NULL;
    p5->m_pRight = NULL;
    p4->m_pLeft = p5;

    BinaryTreeNode *p6 = new(BinaryTreeNode);
    p6->m_nValue = 7;
    p6->m_pLeft = NULL;
    p6->m_pRight = NULL;
    p4->m_pRight = p6;
}
void CreateTree2(BinaryTreeNode *root)
{
    BinaryTreeNode *p1 = new(BinaryTreeNode);
    p1->m_nValue = 9;
    p1->m_pLeft = NULL;
    p1->m_pRight = NULL;
    root->m_pLeft = p1;

    BinaryTreeNode *p2 = new(BinaryTreeNode);
    p2->m_nValue = 2;
    p2->m_pLeft = NULL;
    p2->m_pRight = NULL;
    root->m_pRight = p2;
}
void MidTranverse(BinaryTreeNode *root)
{
    if(root != NULL)
    {
        MidTranverse(root->m_pLeft);
        cout << root->m_nValue << " ";
        MidTranverse(root->m_pRight);
    }
}

void DeleteTree(BinaryTreeNode *root)
{
    if(root != NULL)
    {
        DeleteTree(root->m_pLeft);
        DeleteTree(root->m_pRight);
        delete(root);
        root = NULL;
    }
}

bool IsPart(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    if(p2 == NULL)
        return true;
    else if(p1 == NULL)
        return false;
    else
    {
        if(p1->m_nValue != p2->m_nValue)
            return false;
        else if(IsPart(p1->m_pLeft, p2->m_pLeft) && IsPart(p1->m_pRight, p2->m_pRight))
            return true;
    }
}

bool HasPartTree(BinaryTreeNode *p1, BinaryTreeNode *p2)
{
    bool result = false;
    if(p1 != NULL && p2 != NULL)
    {
        if(p1->m_nValue == p2->m_nValue)
            result = IsPart(p1, p2);
        if(!result)
            result = HasPartTree(p1->m_pLeft, p2);
        if(!result)
            result = HasPartTree(p1->m_pRight, p2);
    }
    return result;
}

int main()
{
    BinaryTreeNode *tree_1 = new(BinaryTreeNode);
    BinaryTreeNode *tree_2 = new(BinaryTreeNode);
    tree_1->m_nValue = 8;
    tree_1->m_pLeft = NULL;
    tree_1->m_pRight = NULL;
    tree_2->m_nValue = 8;
    tree_2->m_pLeft = NULL;
    tree_2->m_pRight = NULL;

    CreateTree1(tree_1);
    CreateTree2(tree_2);
    cout << "Result:" << HasPartTree(tree_1->m_pRight, tree_2) << endl;

    DeleteTree(tree_1);
    DeleteTree(tree_2);
}
View Code
